4-Prong T-Nuts, Zinc Plated

4-prong T-nuts (tee nuts, also known as captive nuts, claw nuts or threaded inserts for wood) in white zinc plated carbon steel, for a strong, permanent and reusable metric thread in wood, plywood, MDF, particleboard and other wood-based panels. The four sharp prongs bite into the material as the nut is driven in and lock it against rotation, so the bolt can be tightened and undone again and again without the nut spinning in its hole. Five sizes, from M4 x 8mm up to M8 x 11mm, in packs of 4 up to 1000.

How It Works

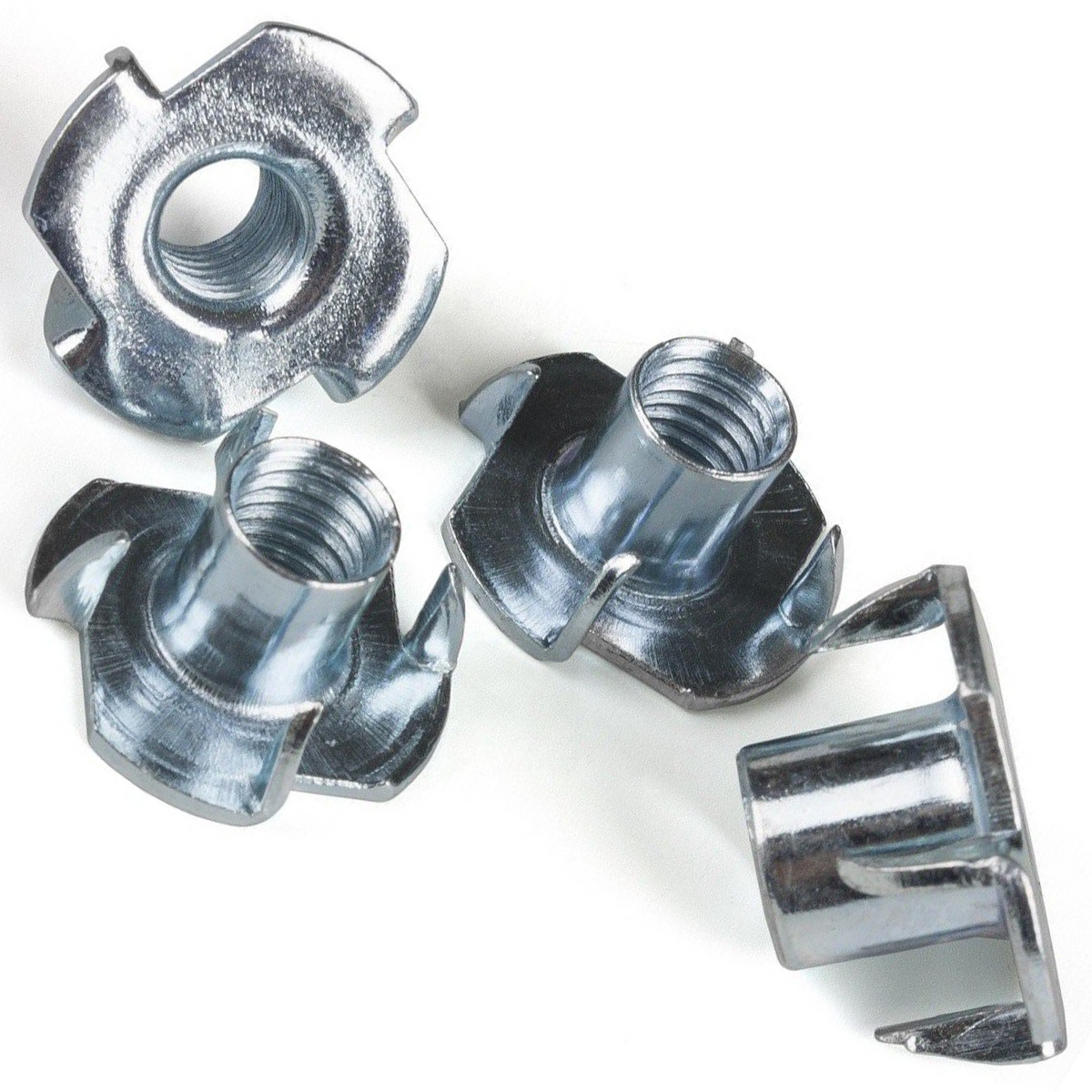

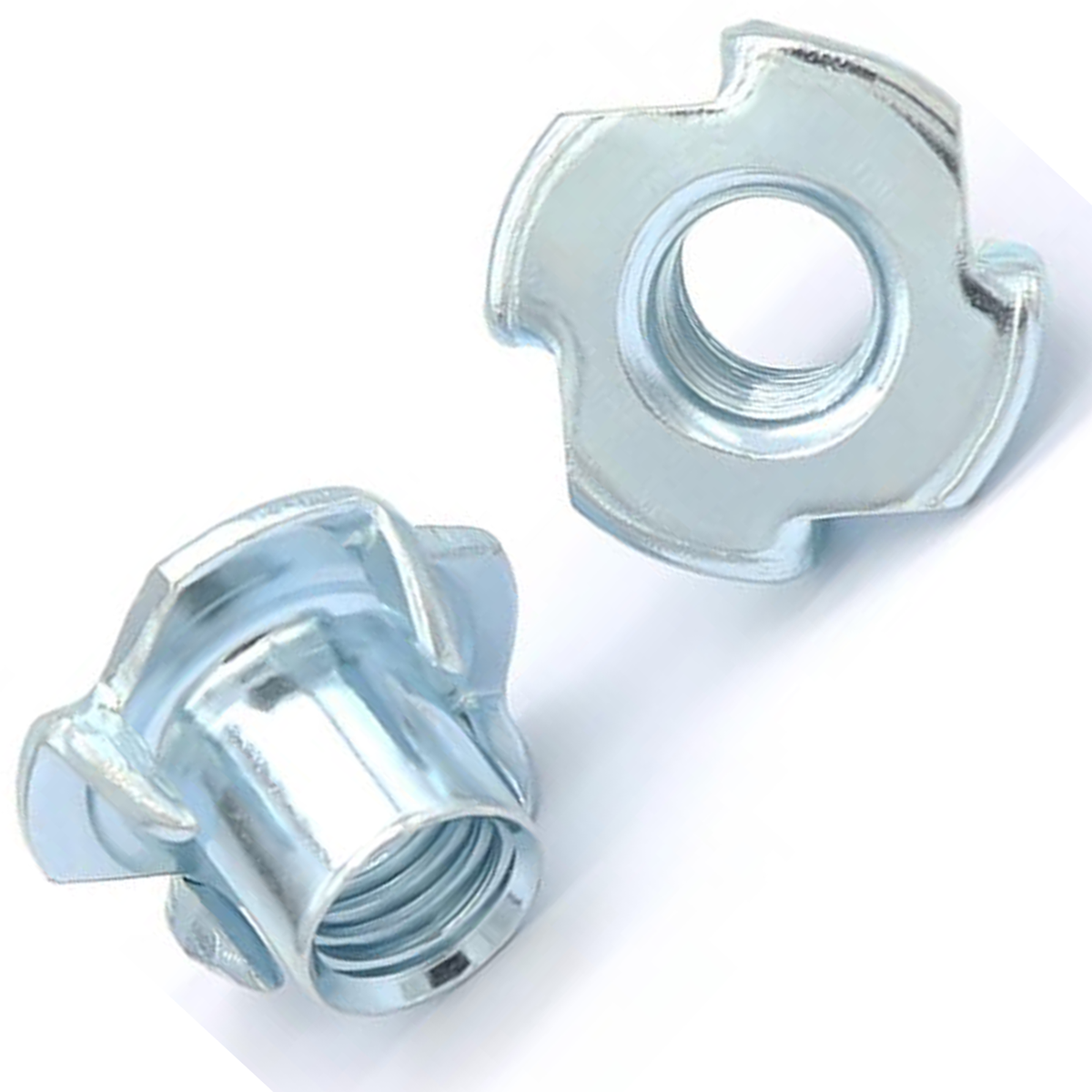

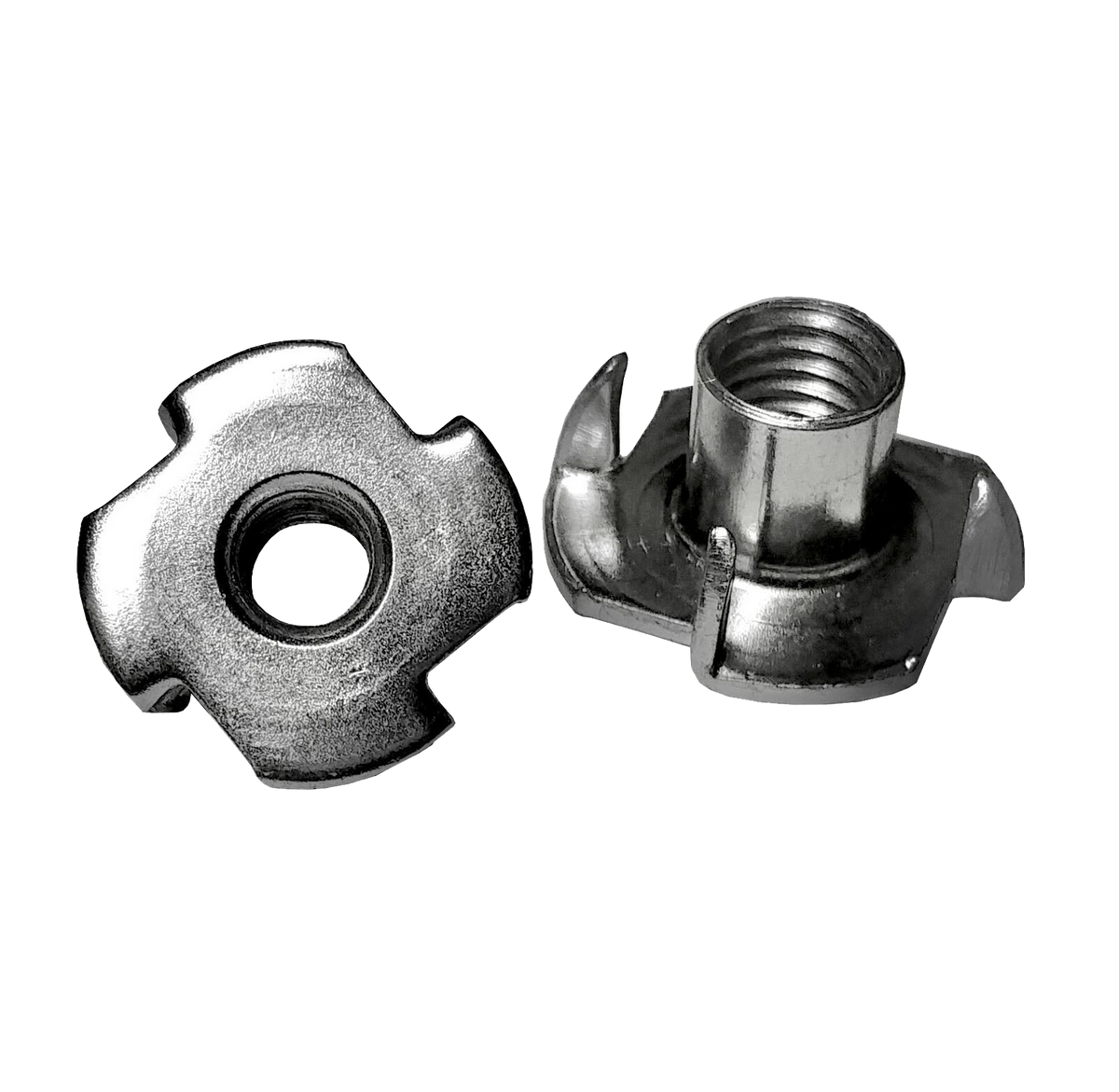

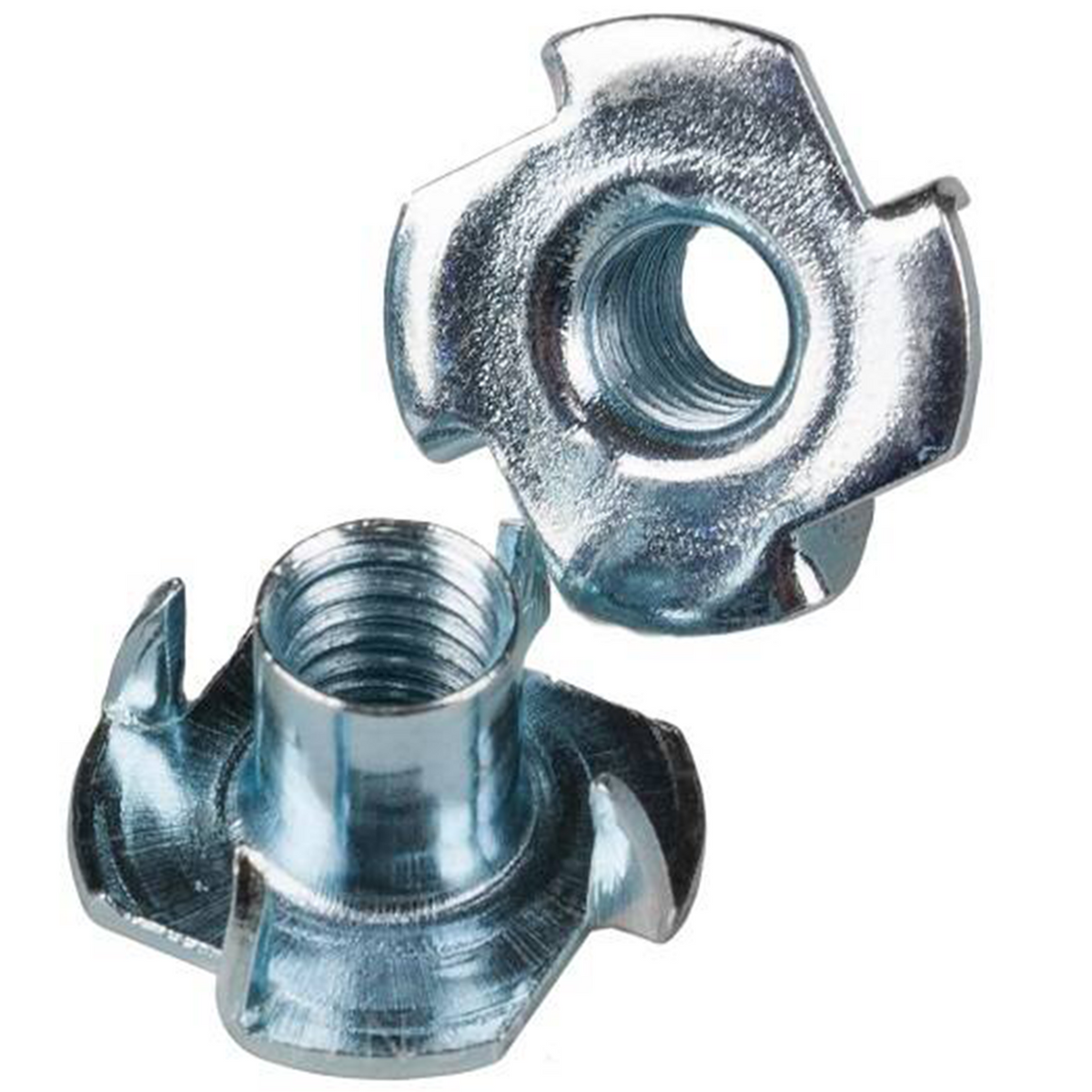

Each 4 pronged tee nut has a metric internal thread in its barrel and a flanged collar fitted with four sharp prongs. The barrel goes into a hole drilled to its diameter; as the nut is driven home, the prongs bite into the wood and stop it turning when the bolt is tightened, with no additional fasteners. The collar sits flush with the surface, so the nut is discreet once fitted. It joins wooden parts to anything with a metric thread: standard metric bolts, machine screws and furniture connector bolts in the matching size.

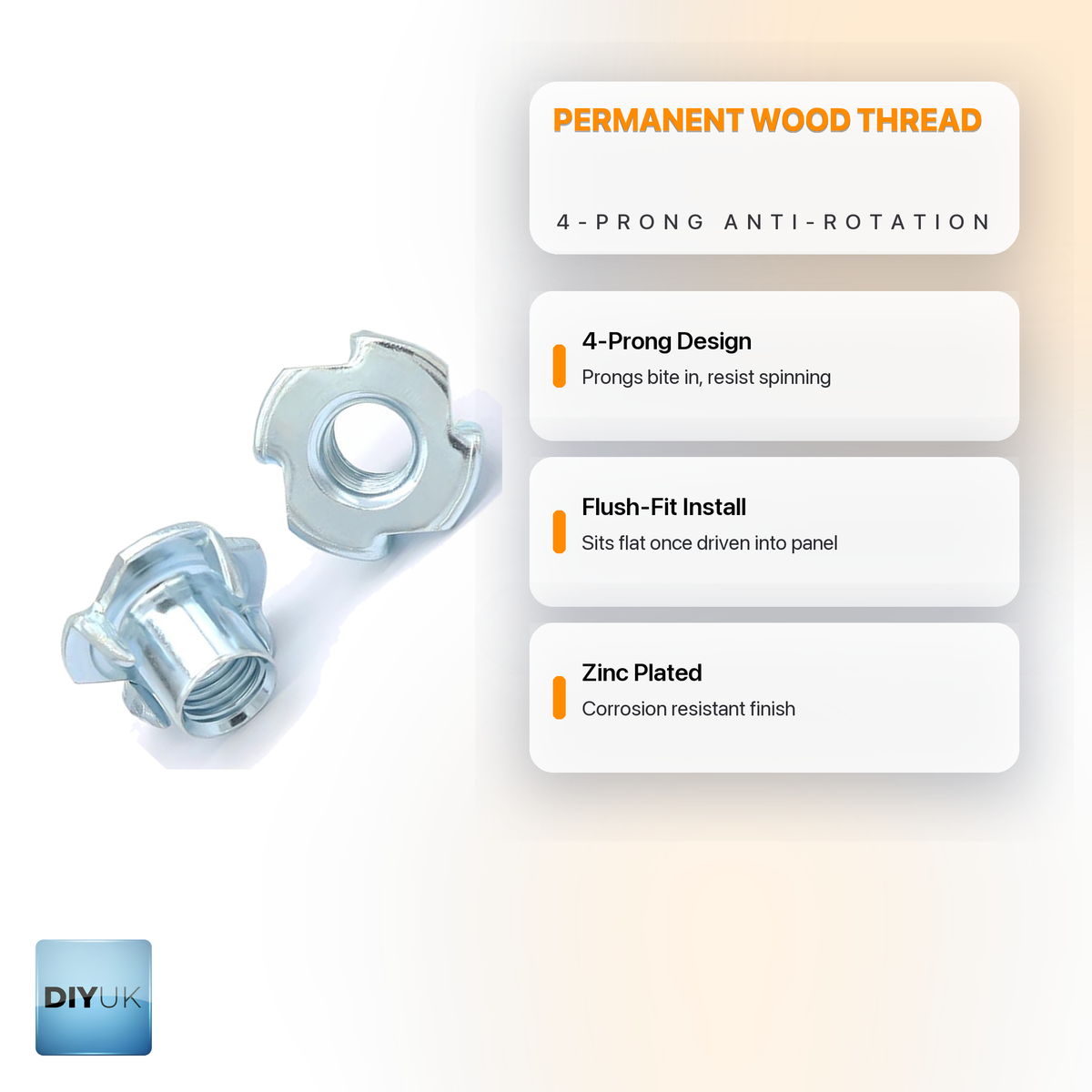

Key Features

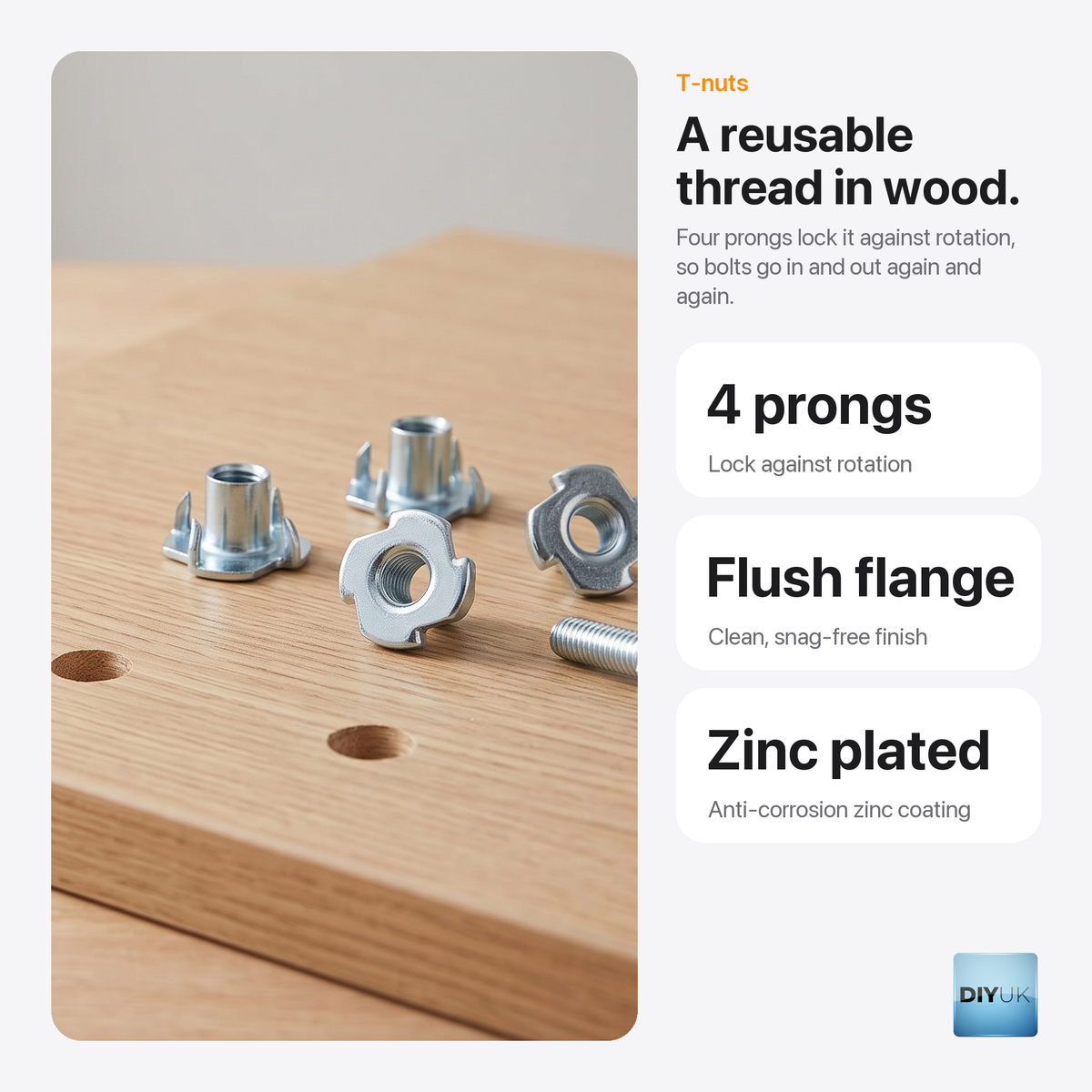

• Four sharp prongs bite into the wood for secure anti-rotation locking, with no additional fasteners
• A durable metric thread in wood that can be tightened and undone again and again

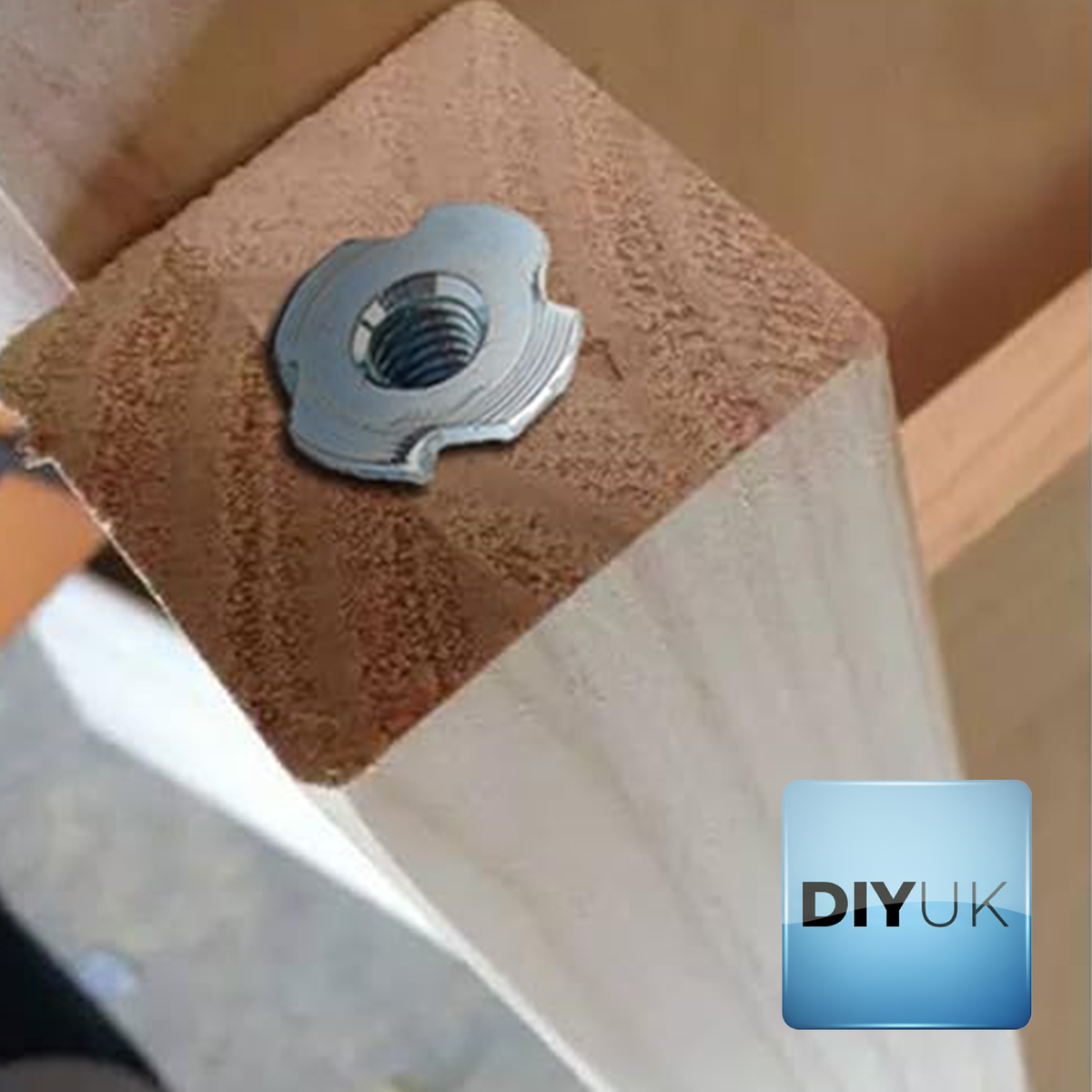

• Flanged collar sits flush with the surface for a neat, snag-free finish; discreet once fitted
• Anti-corrosion white zinc coating on carbon steel
• Fast installation by hand, without specialist tools
• Compatible with standard metric bolts, machine screws and furniture connector bolts in the matching thread size
• Internal thread runs the full depth of the barrel, giving the bolt the whole barrel length to engage with
• Five sizes, M4 to M8, with barrel lengths from 8.0mm to 15.0mm (0.31in to 0.59in) to suit different panel thicknesses

Specification

• Material: carbon steel · Finish: white zinc plated (anti-corrosion coating)
• Type: 4-prong T-nut (tee nut) with flanged collar and metric internal thread
• Thread sizes: M4, M5, M6, M8 · Barrel lengths: 8.0mm (0.31in) to 15.0mm (0.59in)
• Pack sizes: 4, 10, 50, 100, 200, 400 or 1000 T-nuts

Choose the barrel length to suit the panel thickness, so the barrel stays inside the panel once the T-nut is seated.

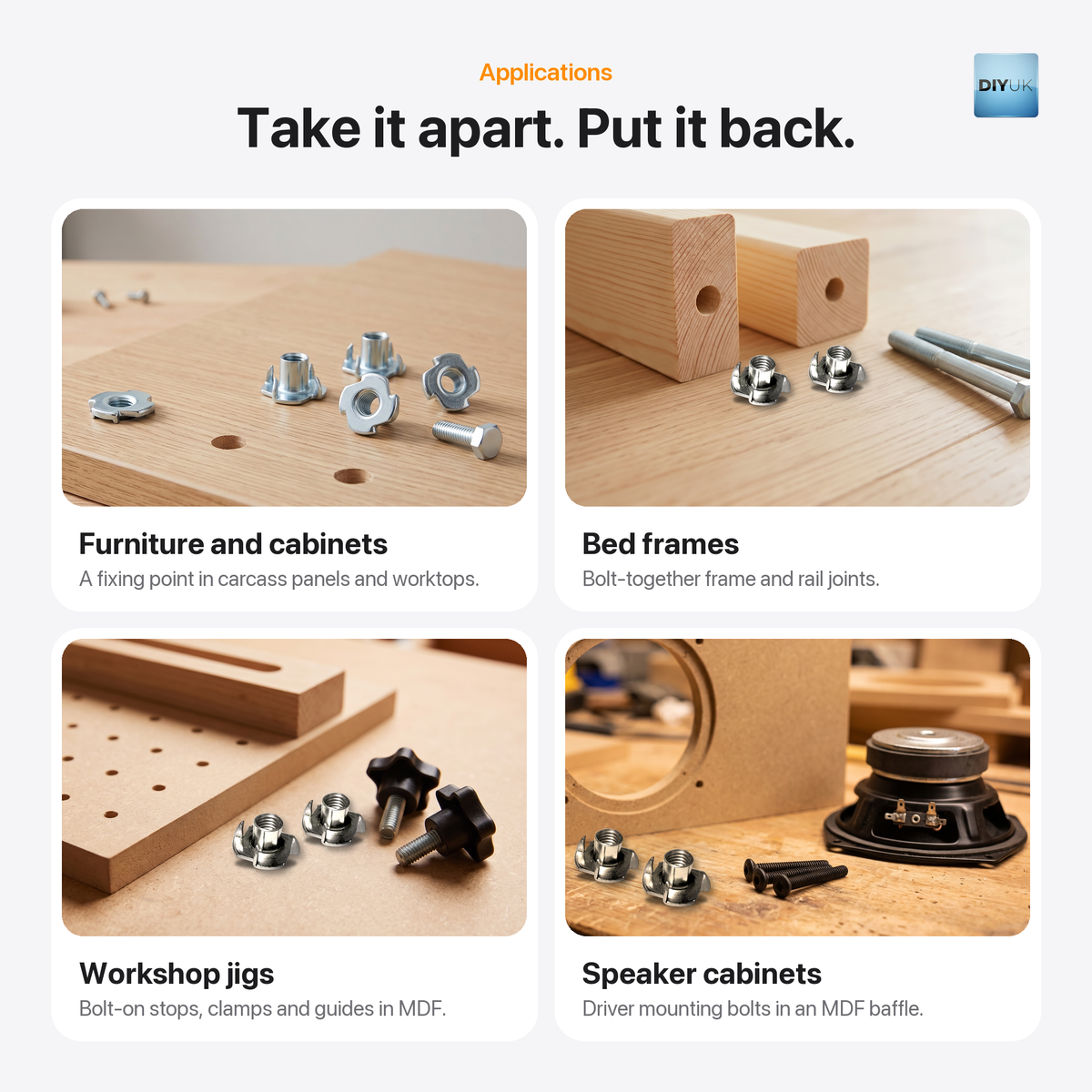

Typical Applications

For joining wooden parts to parts with a metric thread, wherever an assembly will be taken apart and put back together and needs a strong, reusable thread in timber, plywood or MDF:

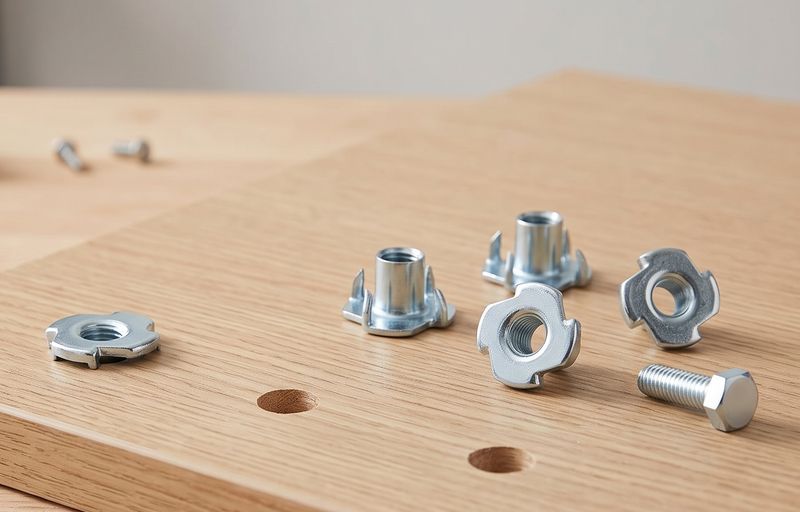

• Furniture: upholstered furniture, table legs and chairs, plus cabinet ends, worktops and carcass panels
• Knock-down and flat-pack furniture: connector bolts that are tightened, and sometimes re-tightened, when furniture is moved or reassembled

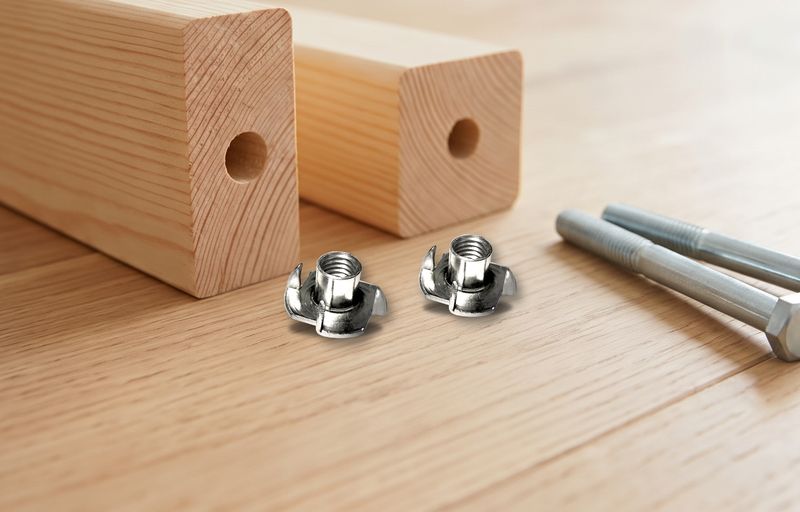

• Bed frames: bolt-together frame and rail joints in solid timber or engineered wood panels
• Outdoor and garden furniture
• Climbing walls: fixing bolt-on holds into plywood climbing wall panels, tightened and undone again and again
• Timber, plywood and MDF structures

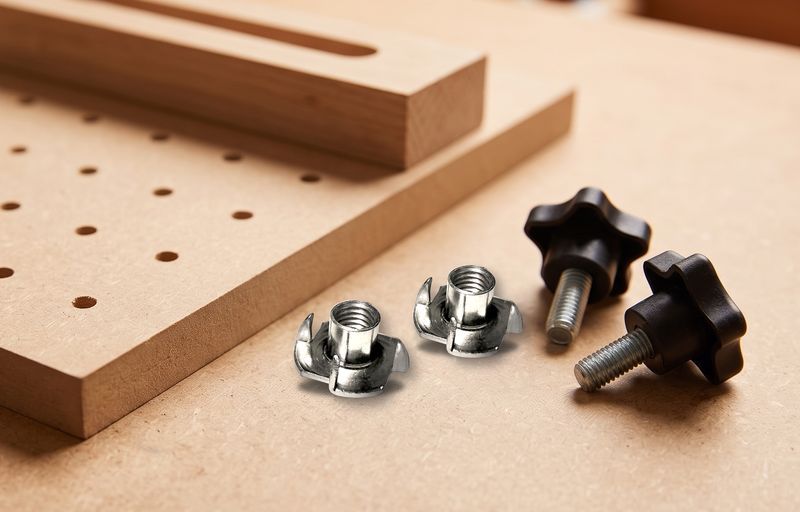

• Workshop jigs and fixtures: a reusable metric thread in MDF or plywood jig bodies for bolt-on stops, clamps and guides

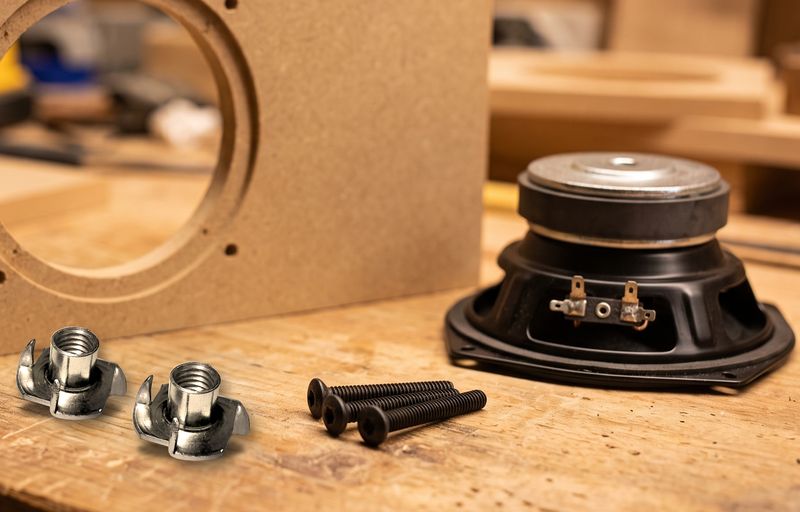

• Speaker cabinets: driver mounting bolts in an MDF baffle

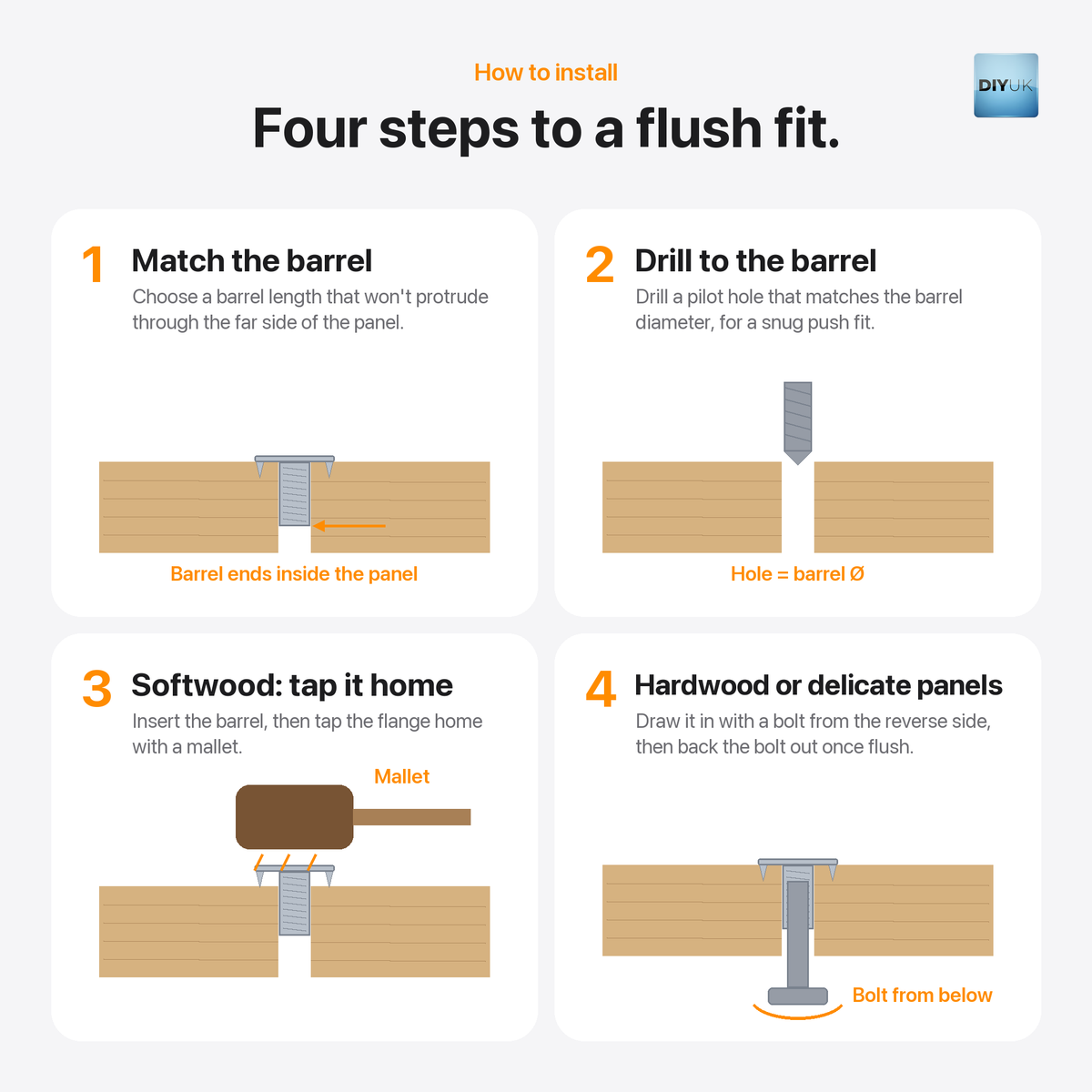

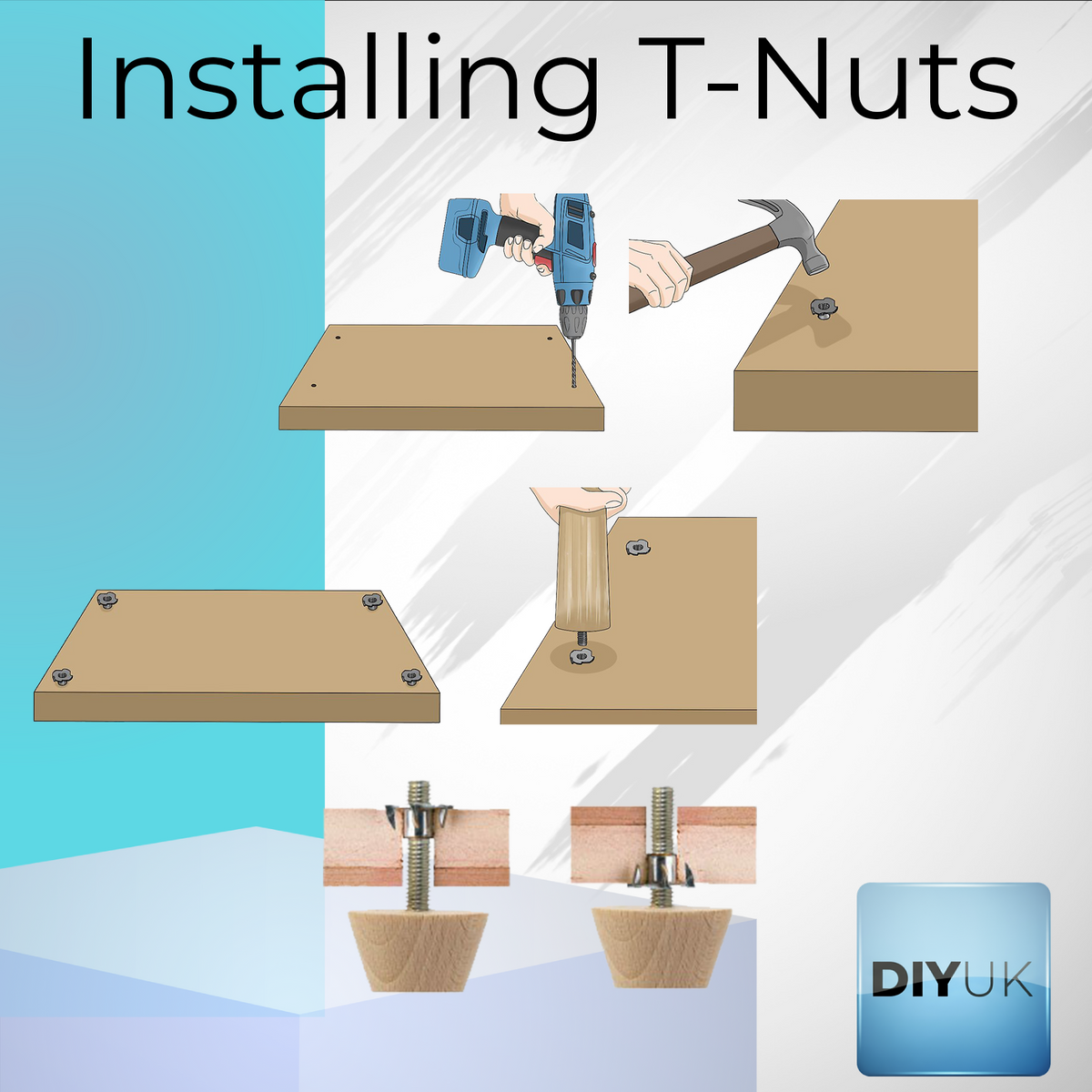

Installation Guidance

1. Choose the size whose barrel length suits the panel thickness, so the barrel stays inside the panel once fully seated.
2. Drill a pilot hole to match the barrel diameter in the table above, for a snug push fit.
3. Insert the barrel into the pilot hole.

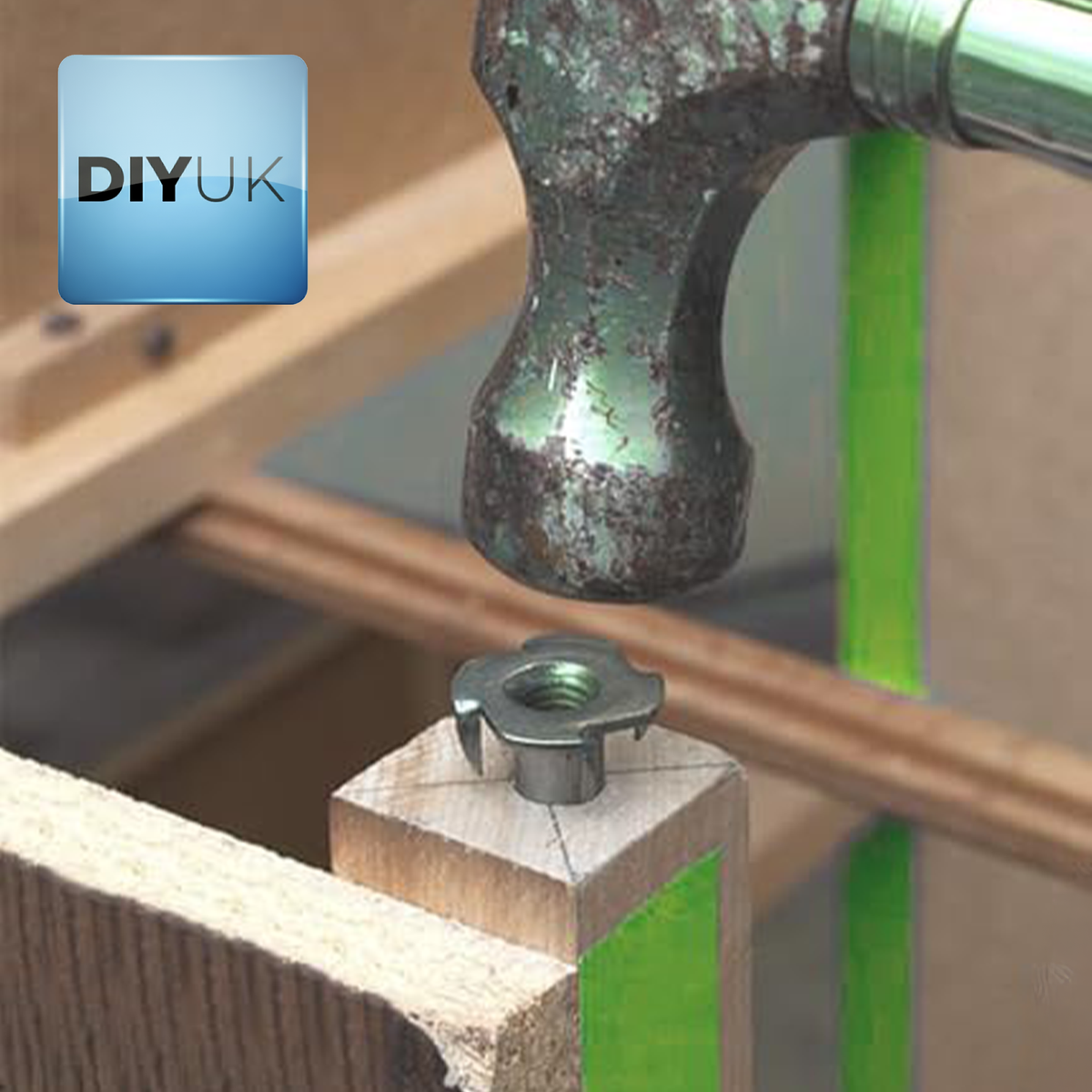

4. On softwood, tap the flange home with a mallet for a quick, direct fit.
5. On hardwood or delicate panels, thread a bolt through from the reverse side and tighten it to draw the prongs in evenly, then back the bolt out once the flange sits flush.
6. Once fitted, the T-nut takes metric bolts, machine screws or furniture connector bolts in the matching thread size.

Common Questions

Which size do I need?

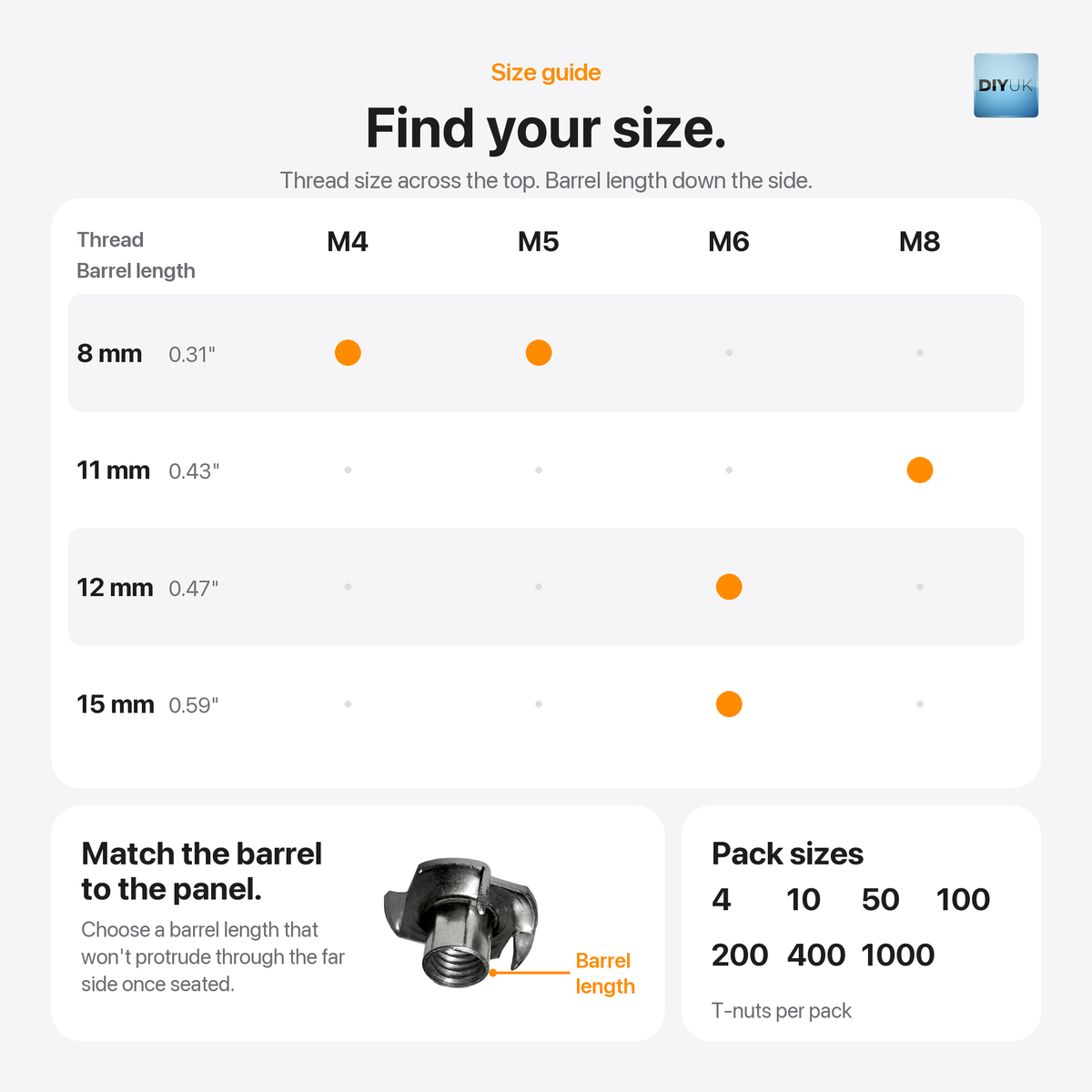

Match the thread to your bolt (M4, M5, M6 or M8), then choose a barrel length that suits the panel thickness: M4 and M5 T-nuts have an 8mm barrel, M6 T nuts 12mm or 15mm, and pronged T nuts M8 an 11mm barrel.

Will an M6 bolt fit?
Yes. Each M6 T-nut is a 6mm captive nut for standard M6 bolts, machine screws and furniture connector bolts, and these 6mm captive nuts come with a 12mm or 15mm barrel.

What size hole do I drill?

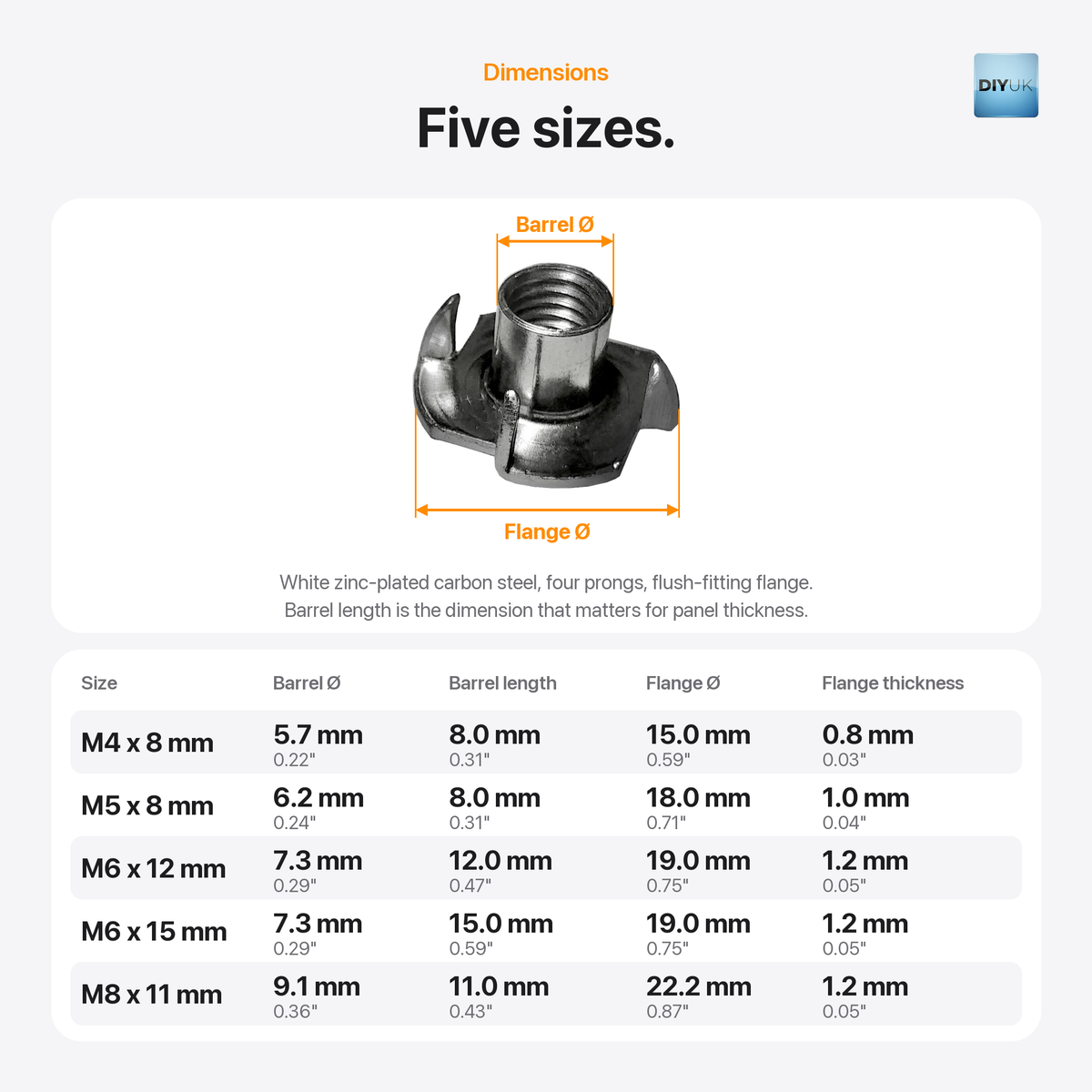

A hole matching the barrel diameter: 5.7mm for M4, 6.2mm for M5, 7.3mm for M6 and 9.1mm for M8.

Do I need special tools?
No. T-nuts fit by hand: tap them home with a mallet in softwood, or draw them in with a bolt in hardwood.

What pack sizes are available?
Every size comes in packs of 4, 10, 50, 100, 200, 400 or 1000 T-nuts.
