U-Shape Post Support with Raised Saddle

Heavy-duty U-shape post support bracket for bolting timber fence, gate and pergola posts down onto concrete, paving or decking, using a deep pressed-steel throat that cradles the post on three sides while a raised saddle step lifts the timber clear of the fixing surface below.

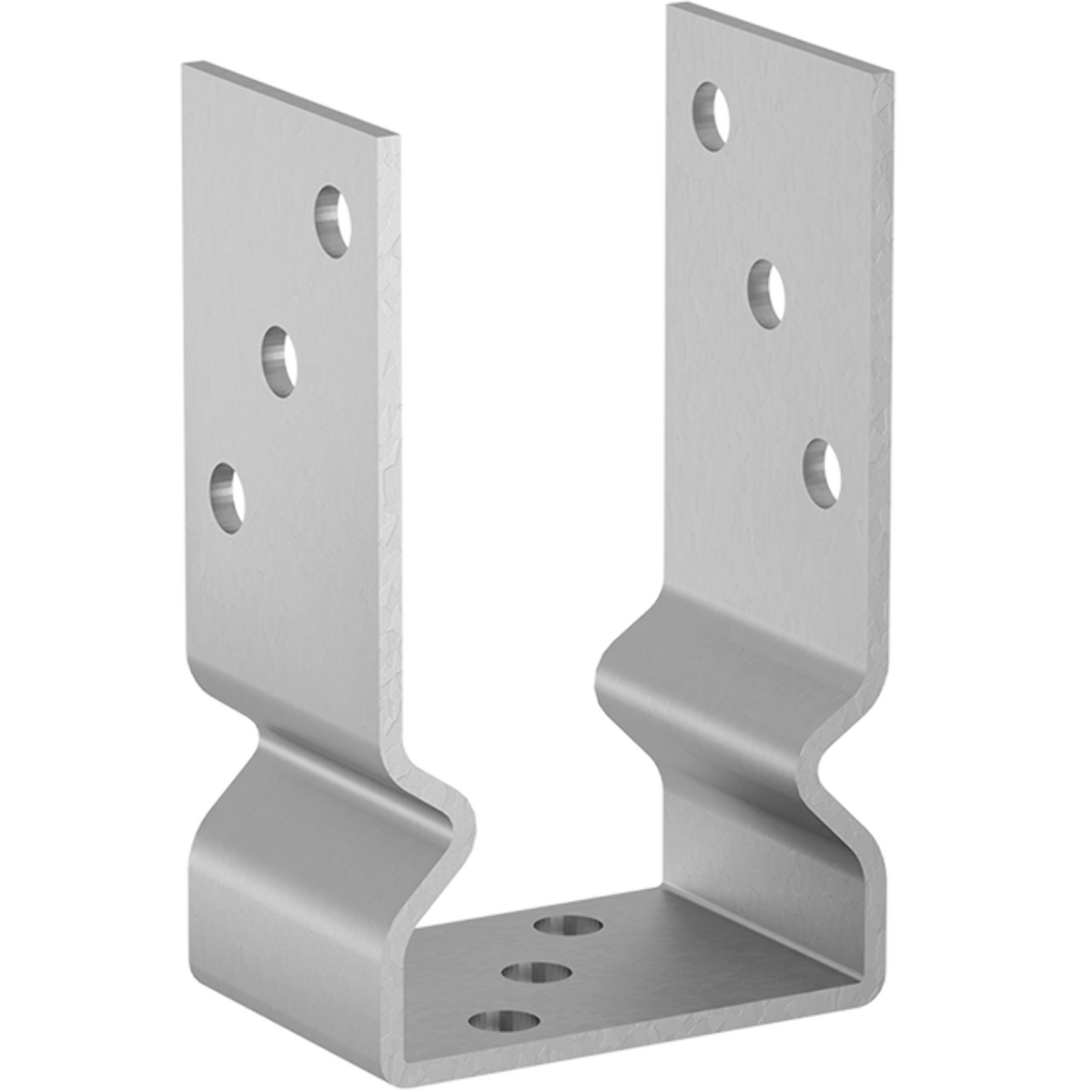

The bracket is pressed from 4mm (0.16in) structural steel and hot-dip galvanised for all-round corrosion resistance, supplied as standard in a bright silver finish; a black powder-coated version is also available where a more discreet, contemporary look is needed to match darker fencing hardware.

Because it bolts straight down onto an existing hard surface rather than requiring the post itself to be set into wet concrete, it gives a quick, mechanical way to anchor a new post or repair an existing one – particularly useful where an old post has rotted off at ground level and the surrounding paving, decking or masonry footing needs to stay intact.

Keeping the end grain of the post off the ground reduces standing water contact and improves airflow around the base of the timber, helping to extend its working life – a straightforward way to strengthen and stabilise fence, gate and pergola posts in outdoor, garden and agricultural settings.

Key Features

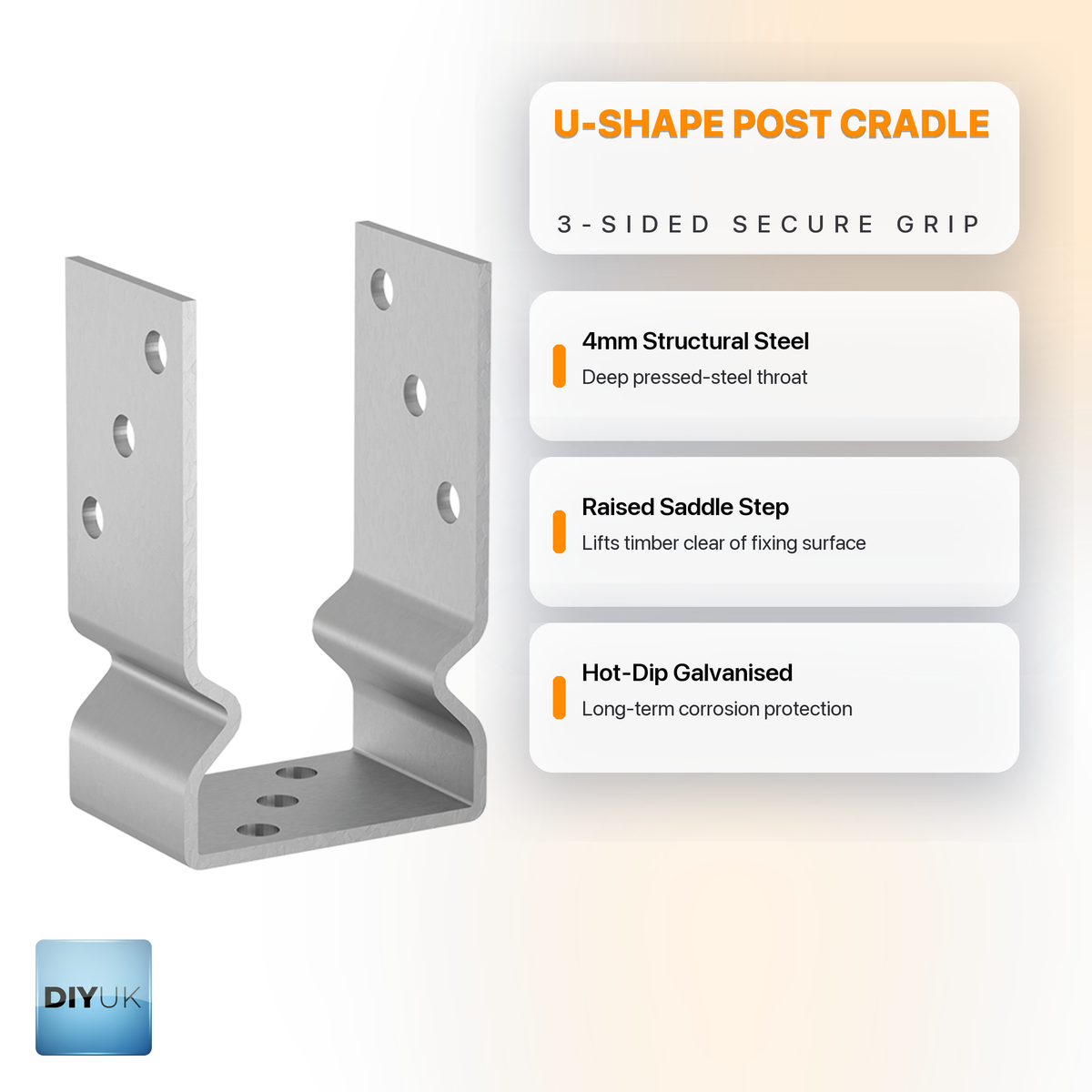

• Deep pressed-steel U-channel cradles the post on three sides for lateral stability, with a raised saddle step that lifts the timber's end grain clear of the ground or fixing surface below
• Formed from 4mm (0.16in) structural steel throughout, giving a heavy-duty, rigid fixing that resists bending or splaying under load
• Hot-dip galvanised zinc coating provides all-round corrosion resistance for exposed outdoor use

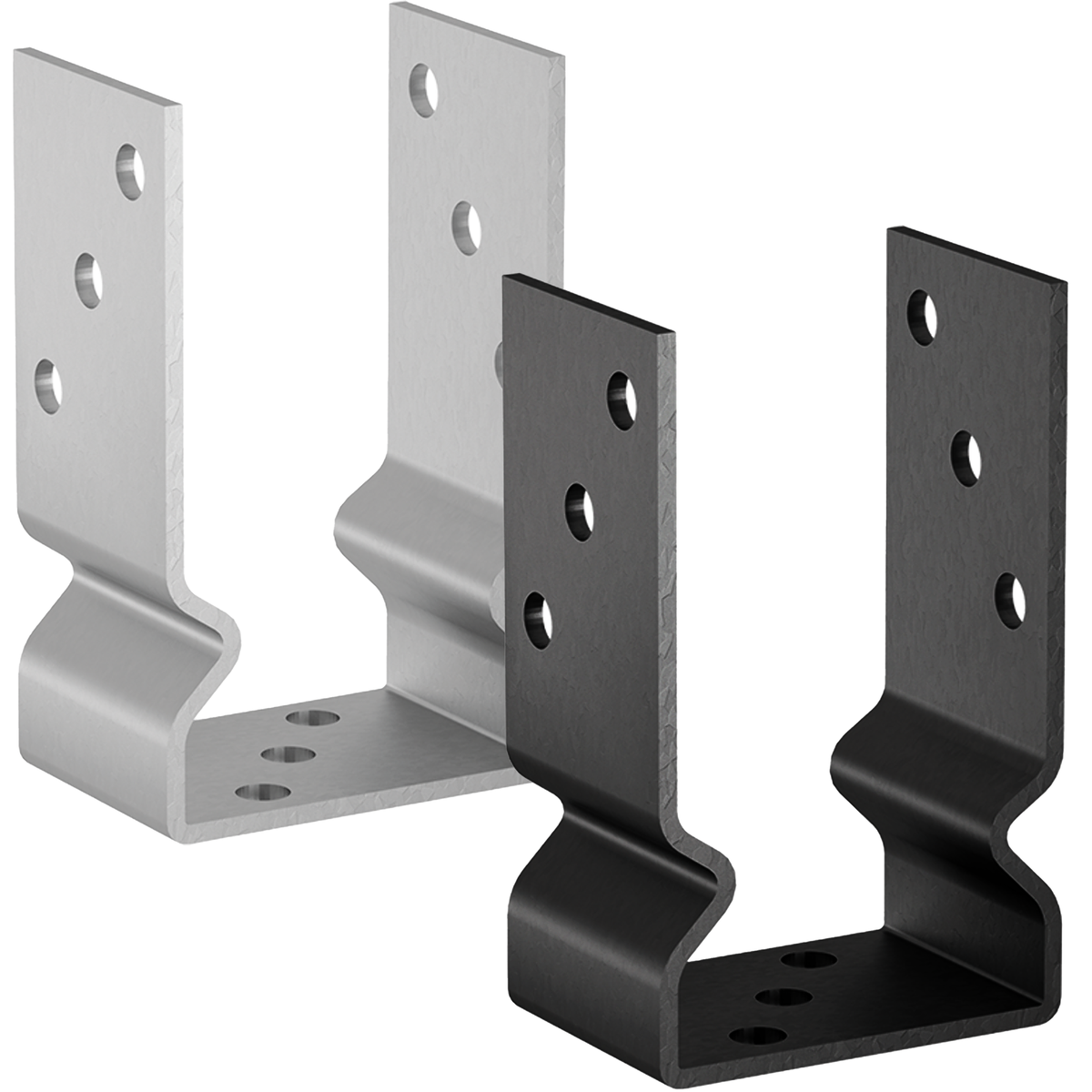

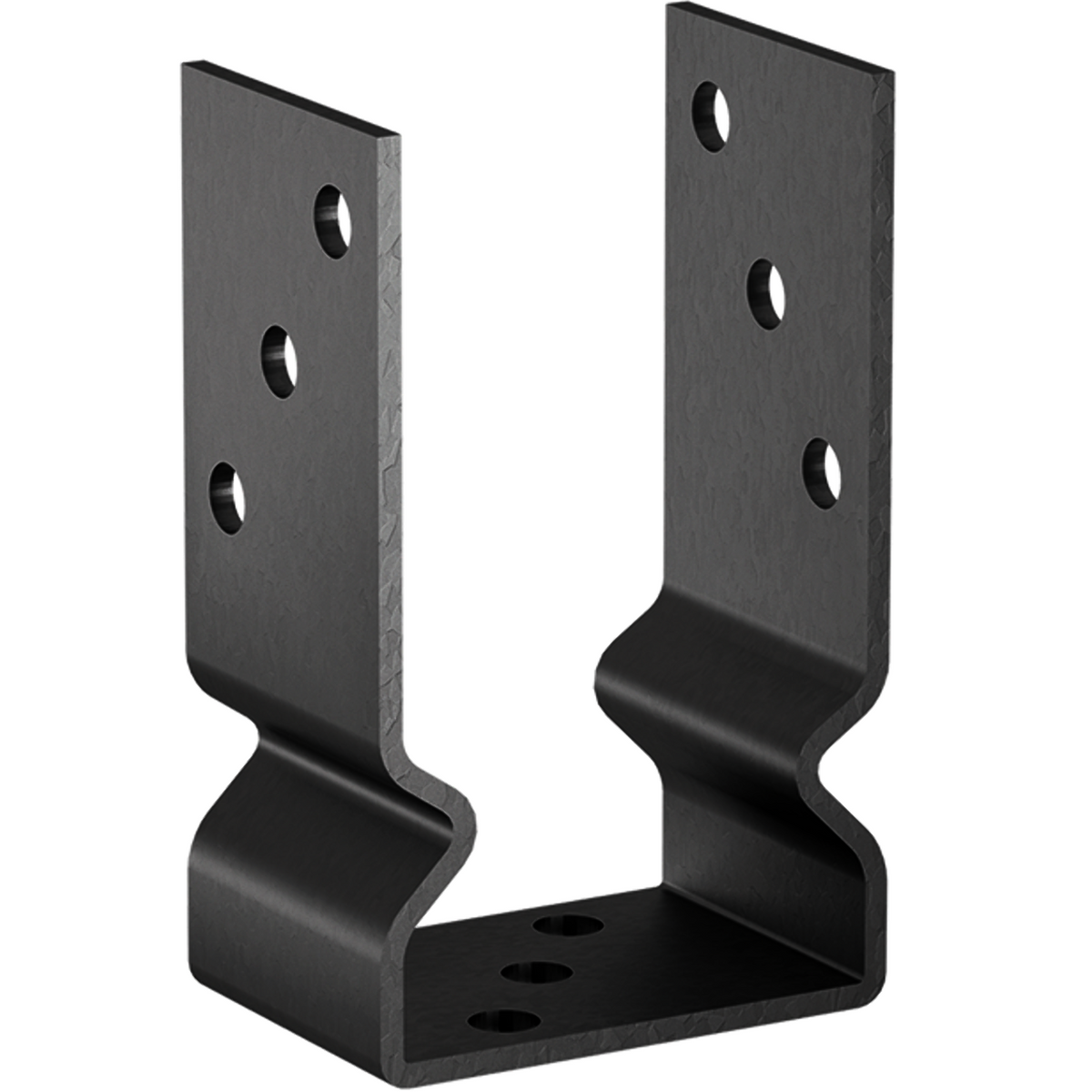

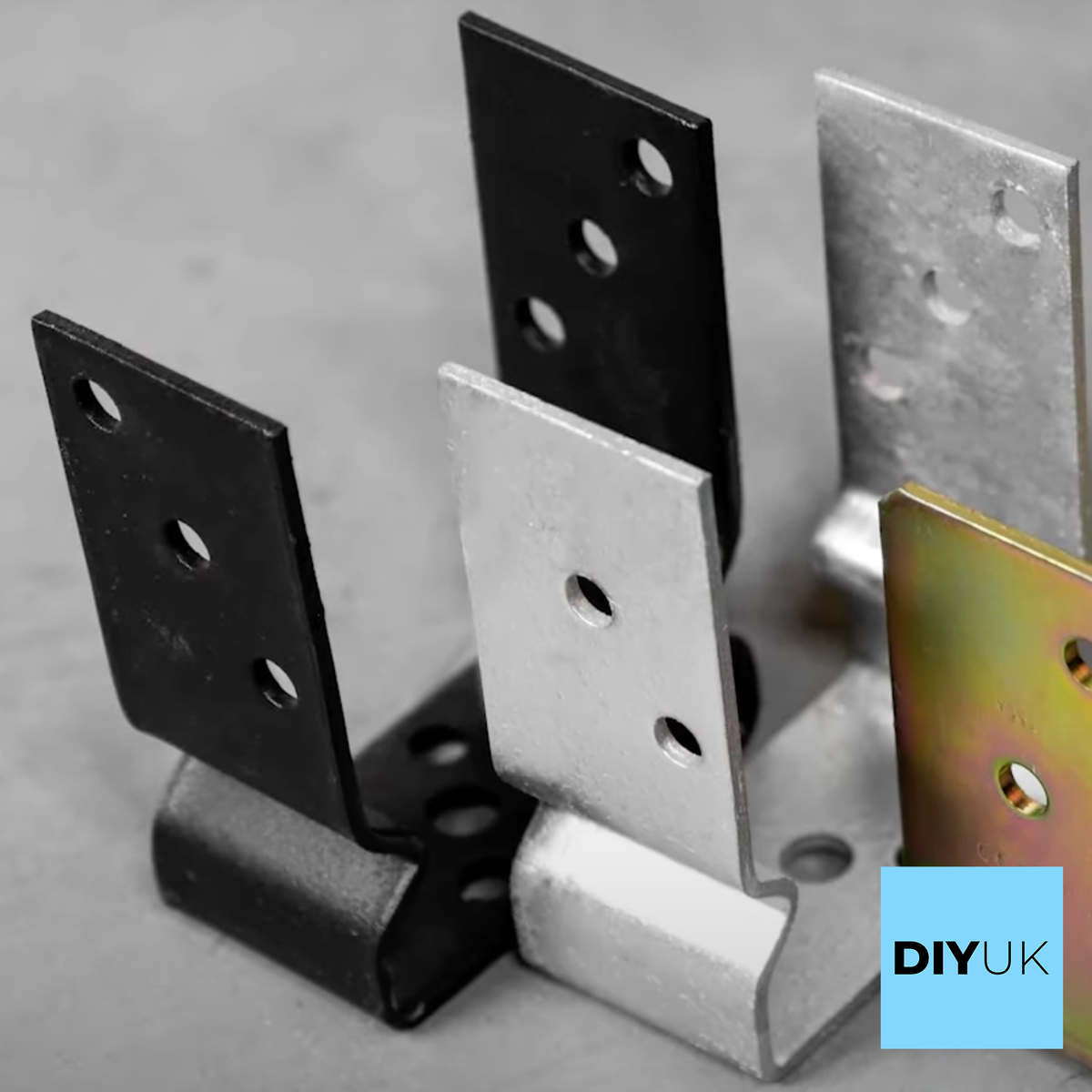

• Supplied as standard in a bright silver hot-dip galvanised finish, with a black powder-coated version also available for a more discreet look
• Bolts down onto concrete, paving or decking, removing the need to set the post itself into wet concrete

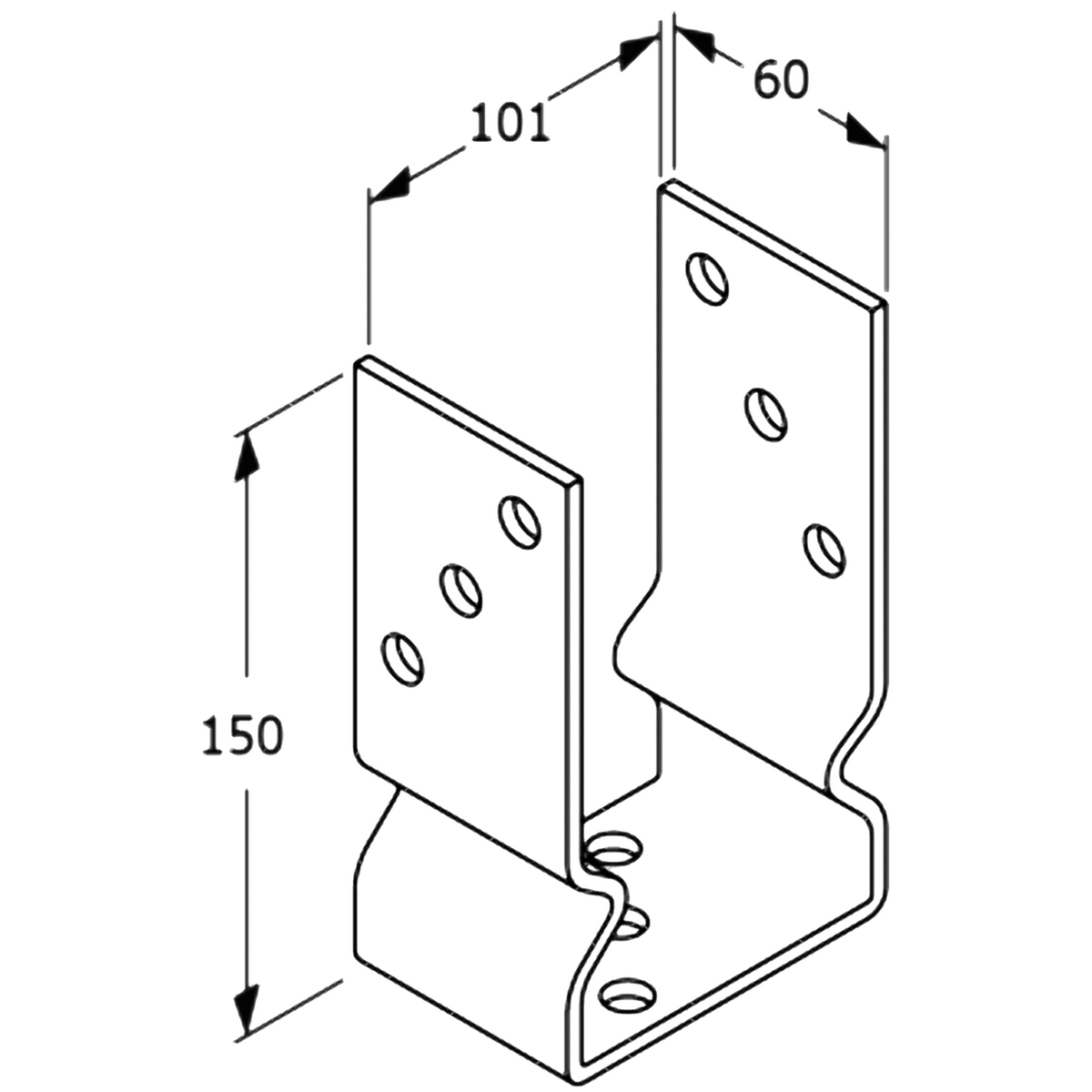

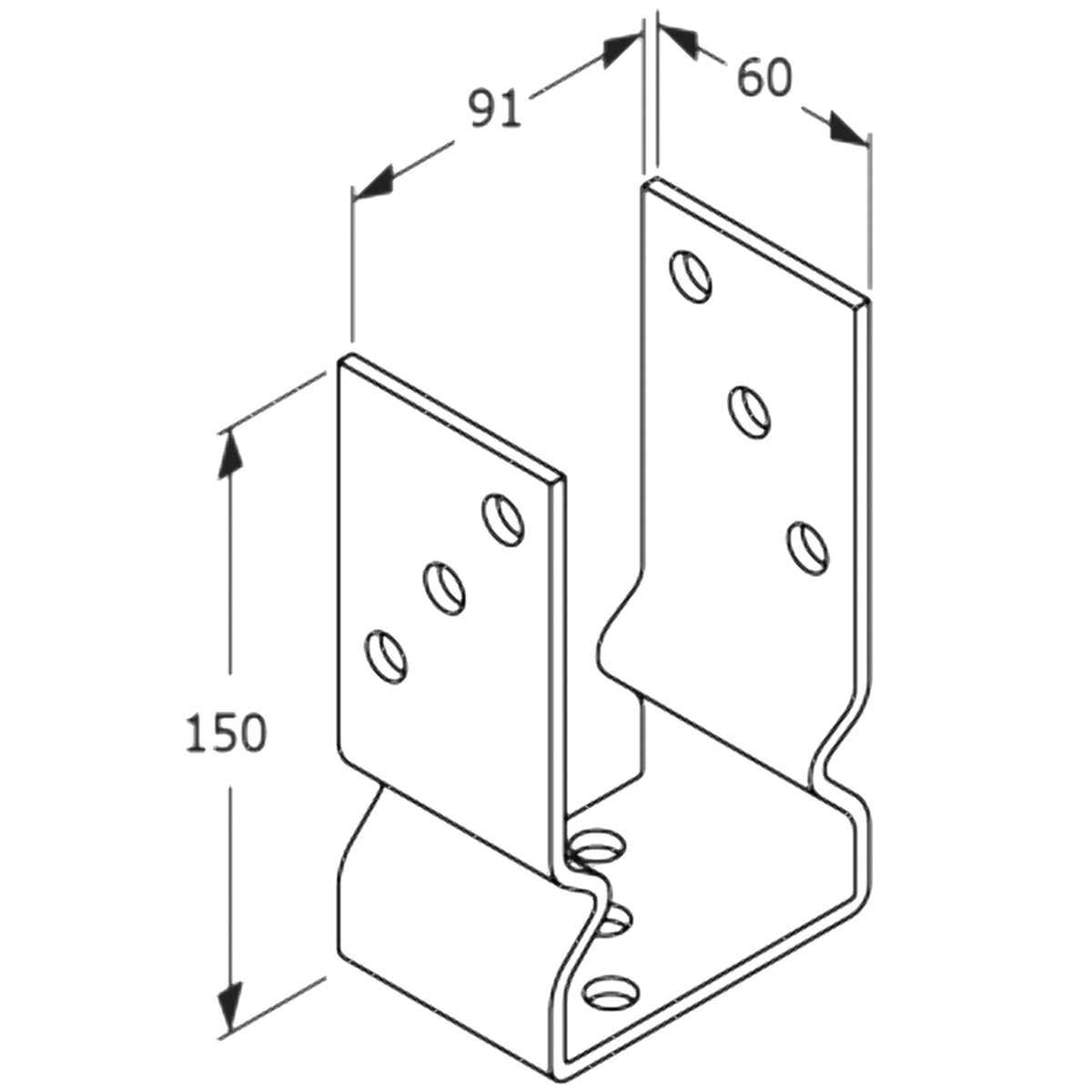

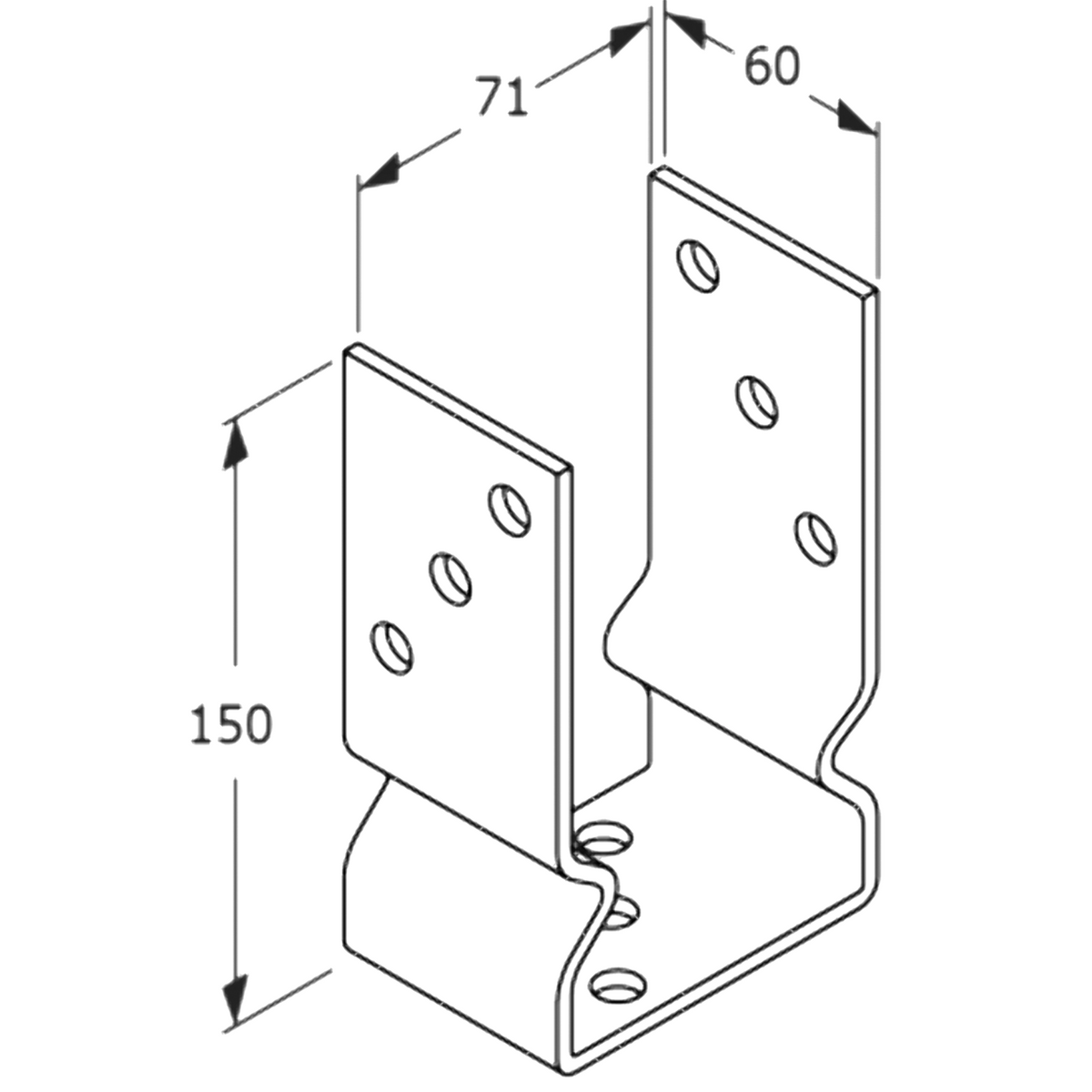

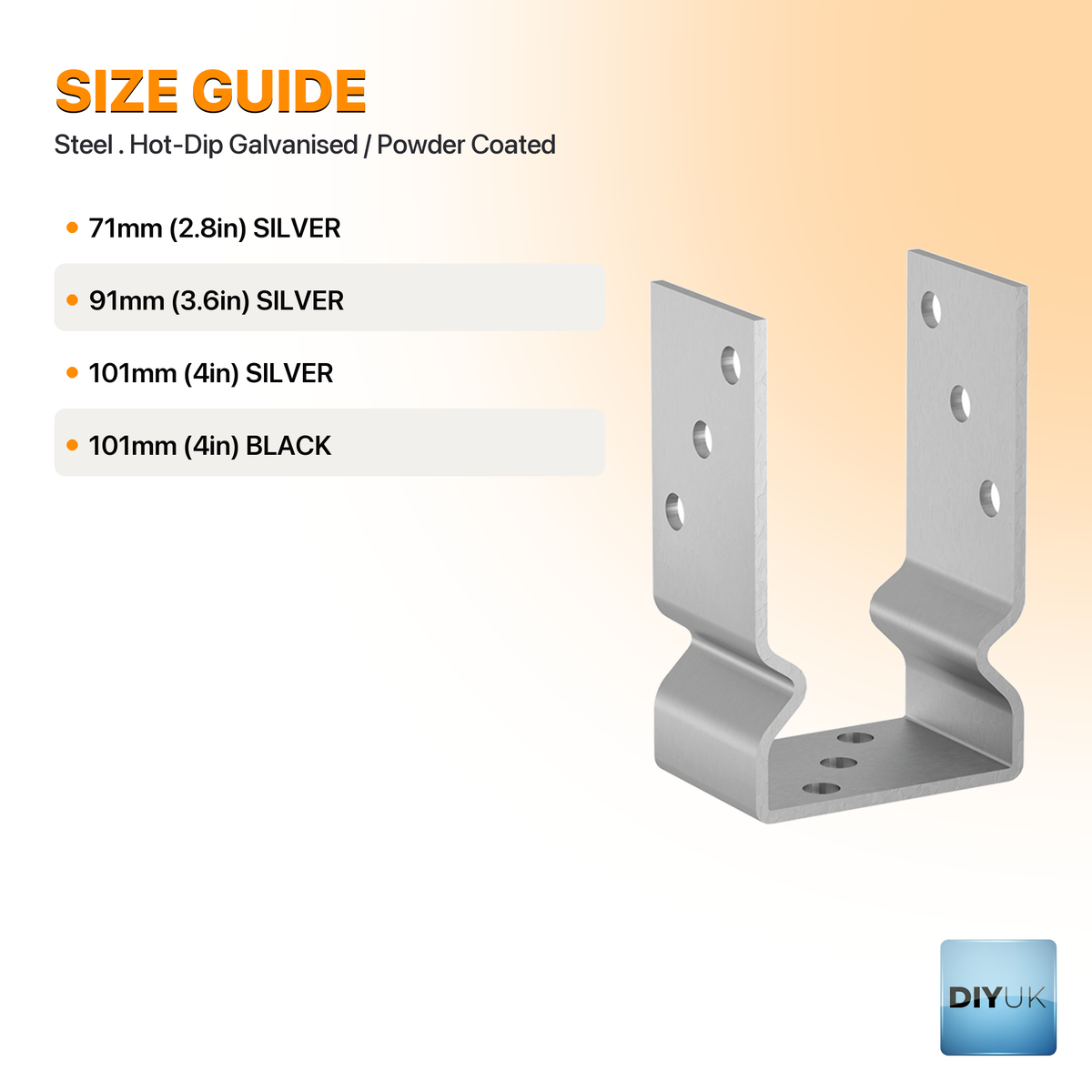

• Available in three post-width sizes – 71mm (2.8in), 91mm (3.6in) and 101mm (4in) – to suit different timber post dimensions
• Side fixing holes (Ø11mm/0.43in) plus three base fixing holes (3 x Ø12mm/0.47in on the 71mm size; 2 x Ø12mm/0.47in and 1 x Ø14mm/0.55in on the 91mm and 101mm sizes) per bracket for a secure, multi-point fixing into both post and base
• Raising the post base clear of the ground reduces standing water contact and improves airflow around the timber, helping to extend its working life

Specification

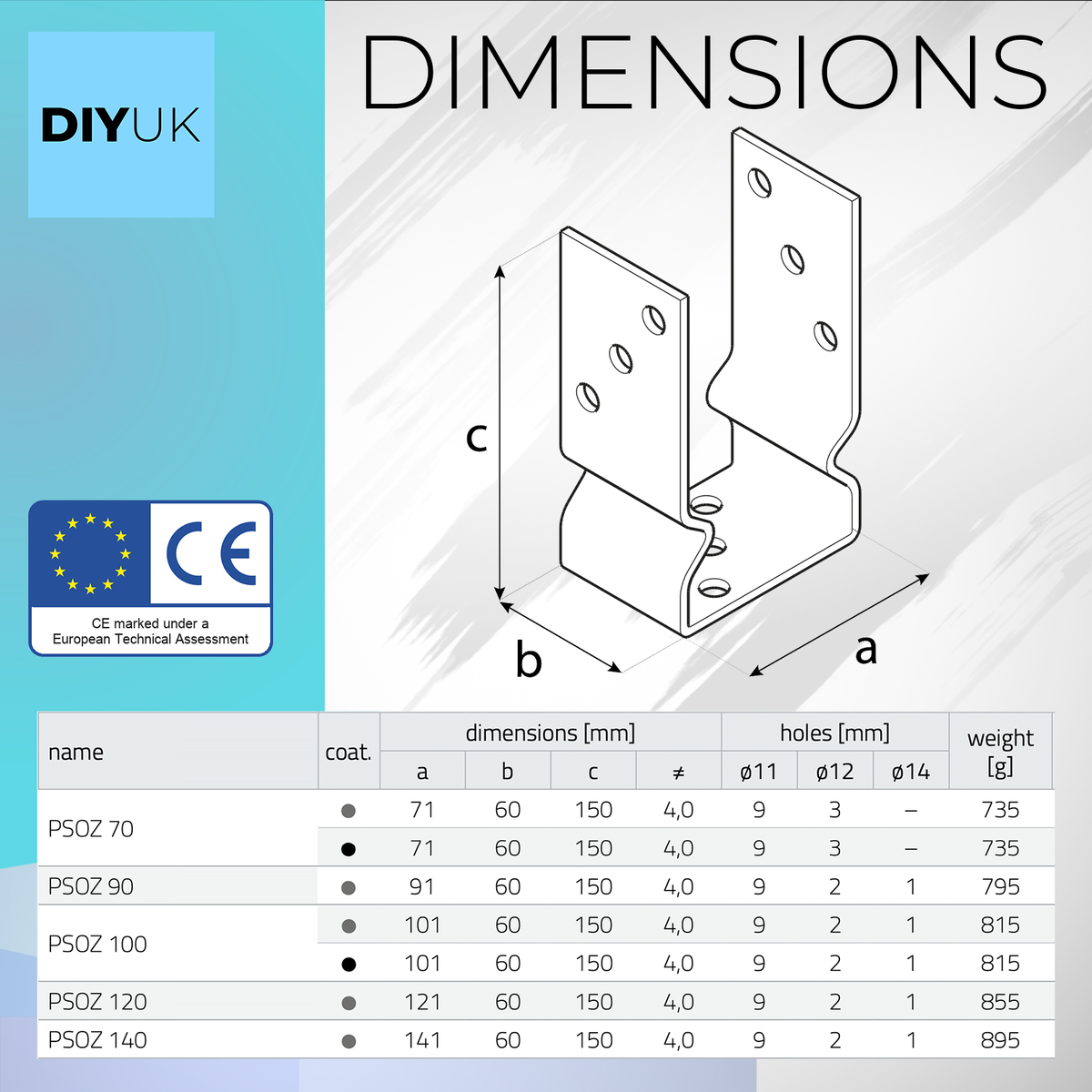

Steel thickness, side wall height, base plate width and number of fixing holes are identical across all three sizes – only the internal U-channel width, the base hole diameters and the overall weight change to match the post being fitted, so select the size that corresponds to the actual dimensions of the timber on site rather than the nominal post size.

Typical Applications

• Replacing rotten or damaged fence post bases where the original timber has failed at ground level, without disturbing the surrounding paving or footing
• New fence, gate and pergola post installations on concrete or paved bases, where the post needs to stand proud of the hard surface rather than being set into it
• Raised deck post mounting, bolting posts directly down onto the decking structure itself
• Retrofit repairs where a quick, mechanical fix is preferable to breaking out and re-pouring a concrete post hole
• General garden, agricultural and light industrial fencing projects needing a strong, corrosion-resistant, above-ground post-to-base connection
• Projects where the finished look matters as much as the fixing – the silver hot-dip galvanised finish suits most fencing hardware, while the black powder-coated option works well against darker timber stains or painted posts

Installation Guidance

• Bolt the flat base plate down onto a concrete footing, paving slab or decking surface through the three base fixing holes, using fixings suited to the substrate – concrete anchors on masonry, coach screws or bolts on timber decking

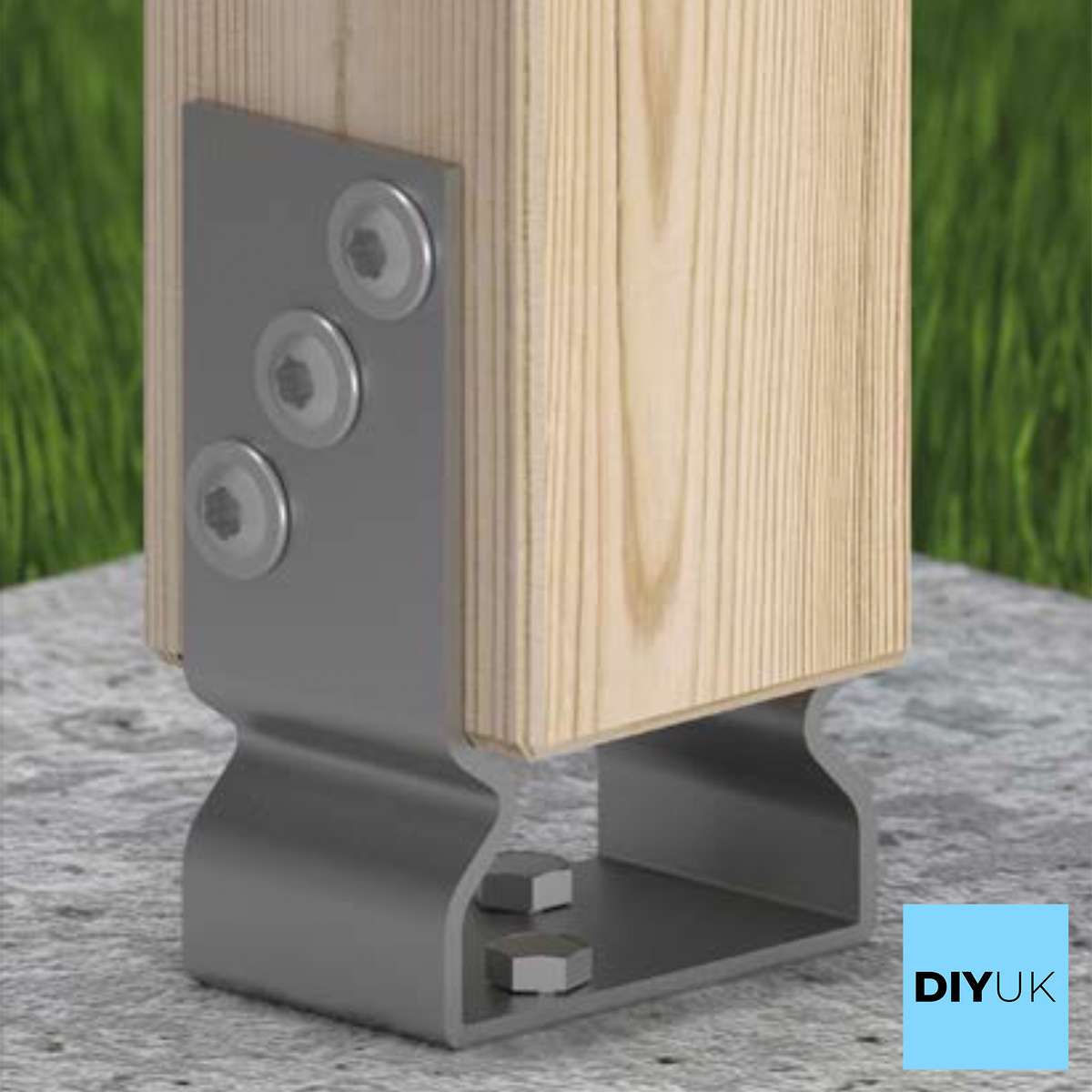

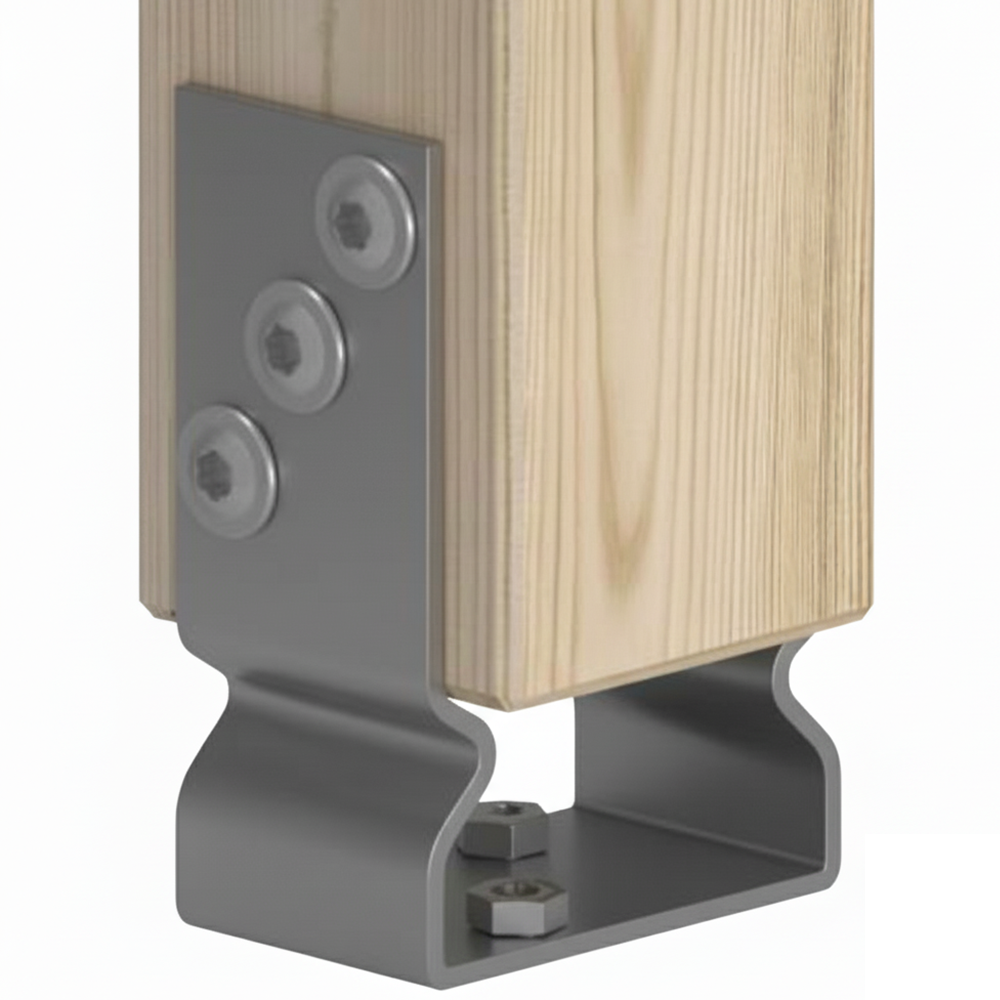

• Set the timber post into the U-channel so that it rests on the raised saddle step, keeping the end grain clear of the fixing surface below
• Check the post is plumb (vertical) before final tightening, then secure it through the side fixing holes using wood screws or bolts sized to suit the timber
• Tighten the base and side fixings evenly rather than fully tightening one side first, to keep the post square in the bracket
• Choose the size that gives a snug fit around the actual dimensions of the post being used – measure the timber before ordering to avoid excess play in the bracket
