DIYUK Large Flat Metal Penny Washers, DIN 9021 / ISO 7093, White Zinc Plated Steel, M4 M5 M6 M8 M10 M12 to M30, Packs of 2-200

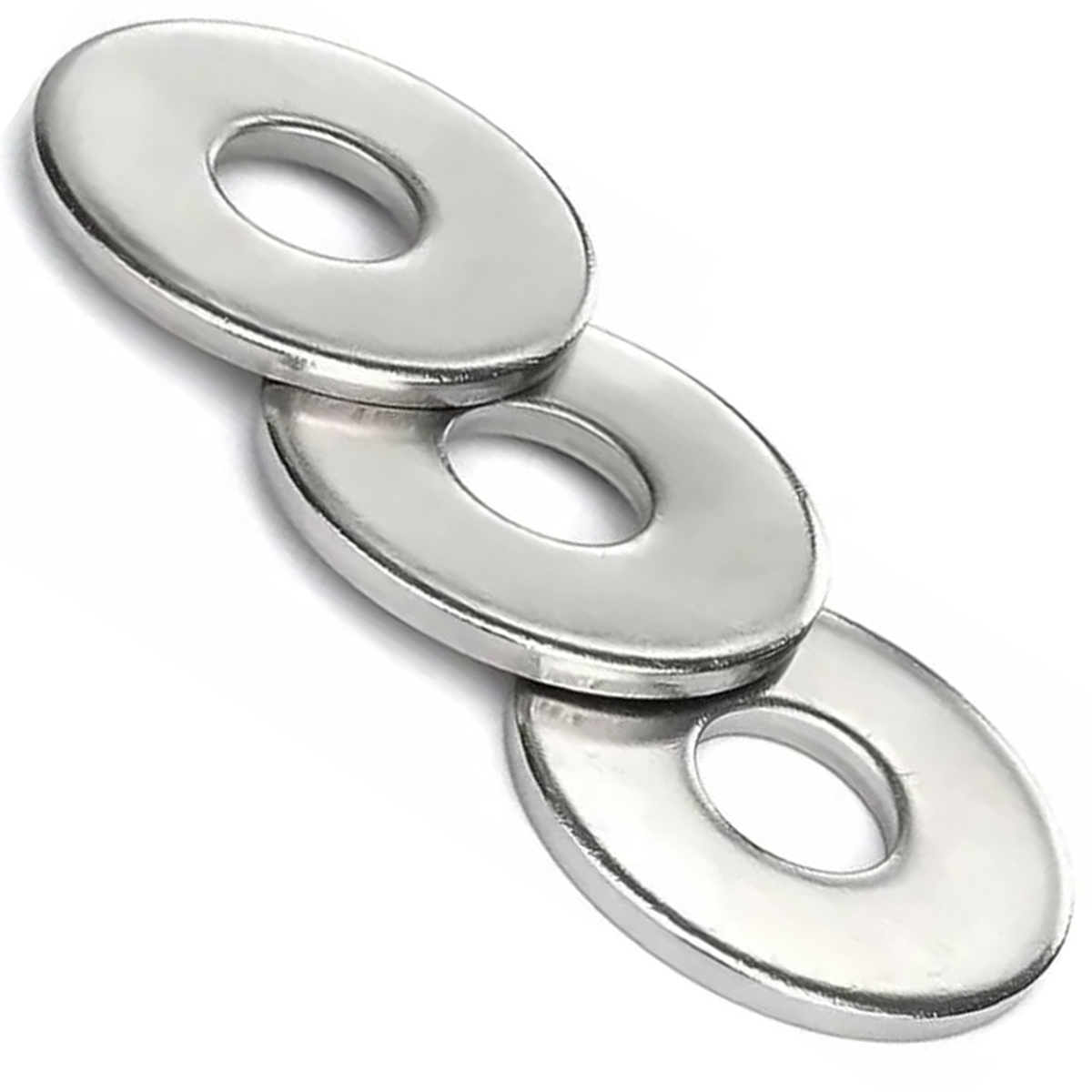

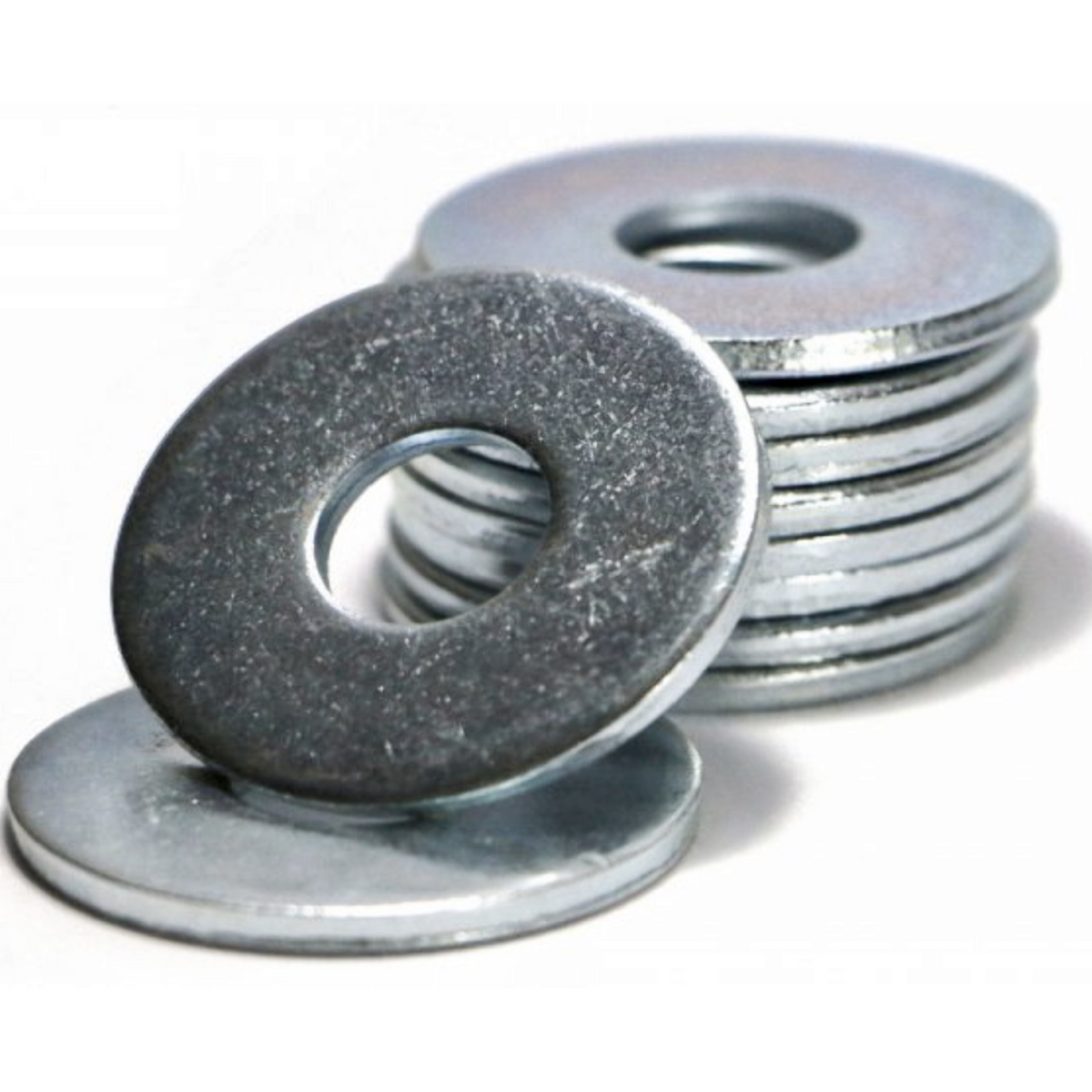

Penny washers to DIN 9021 / ISO 7093 in white zinc-plated steel, with an extra-large outer diameter that spreads the load of a screw or bolt. Also known as fender washers, mudguard washers or repair washers, these large flat metal washers help stop a fixing digging into, cracking or pulling through soft, thin or worn material, from timber and plasterboard to sheet metal panels. Twelve sizes from M4 to M30, in packs of 2 to 200.

How It Works
The enlarged contact surface spreads the clamping load evenly and reduces the pressure on the fixing and on the material beneath it. For the same bolt size, a penny washer covers a much wider area than a standard flat washer, so the head of a screw or bolt (or the nut) bears on a broad, flat face. The same wide face bridges oversized, worn or damaged fixing holes, and helps limit damage from friction and vibration.

Key Features

• Extra-large outer diameter: spreads the clamping load over a much wider area than a standard flat washer, reducing the risk of the fixing head crushing, cracking or pulling through the material beneath
• Made to DIN 9021 / ISO 7093 dimensions for a consistent, repeatable fit, size after size
• White zinc plated steel: a sacrificial, protective zinc coating gives everyday corrosion resistance against moisture and oxidation, for indoor and outdoor general-purpose use
• Covers worn or oversized holes: the wide face bridges a gap that a standard washer would no longer cover
• 12 sizes from M4 to M30, so the right washer is on hand from light joinery to structural and automotive work
• Imperial equivalents included: every metric dimension in the table below is shown with its inch equivalent for quick reference

Specification

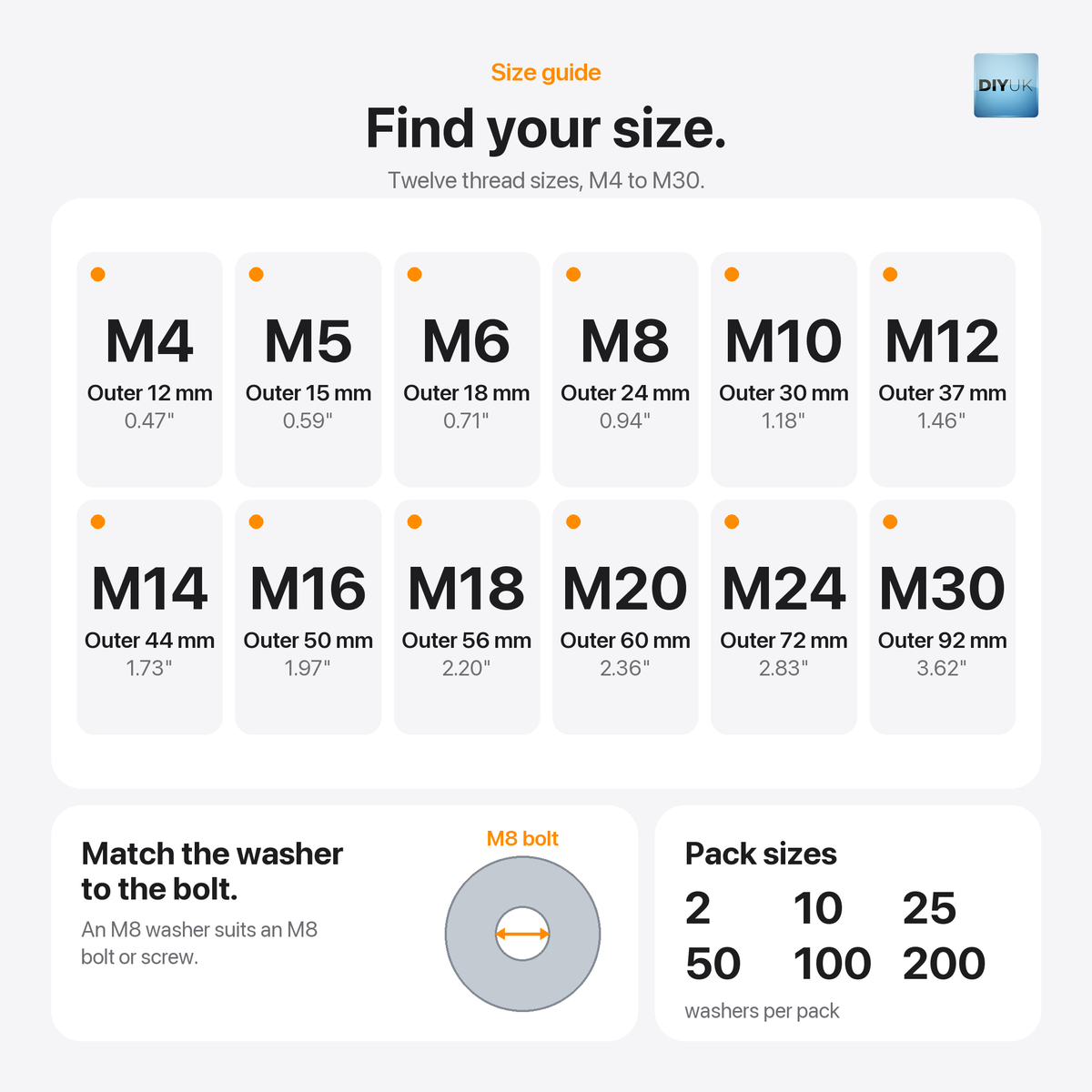

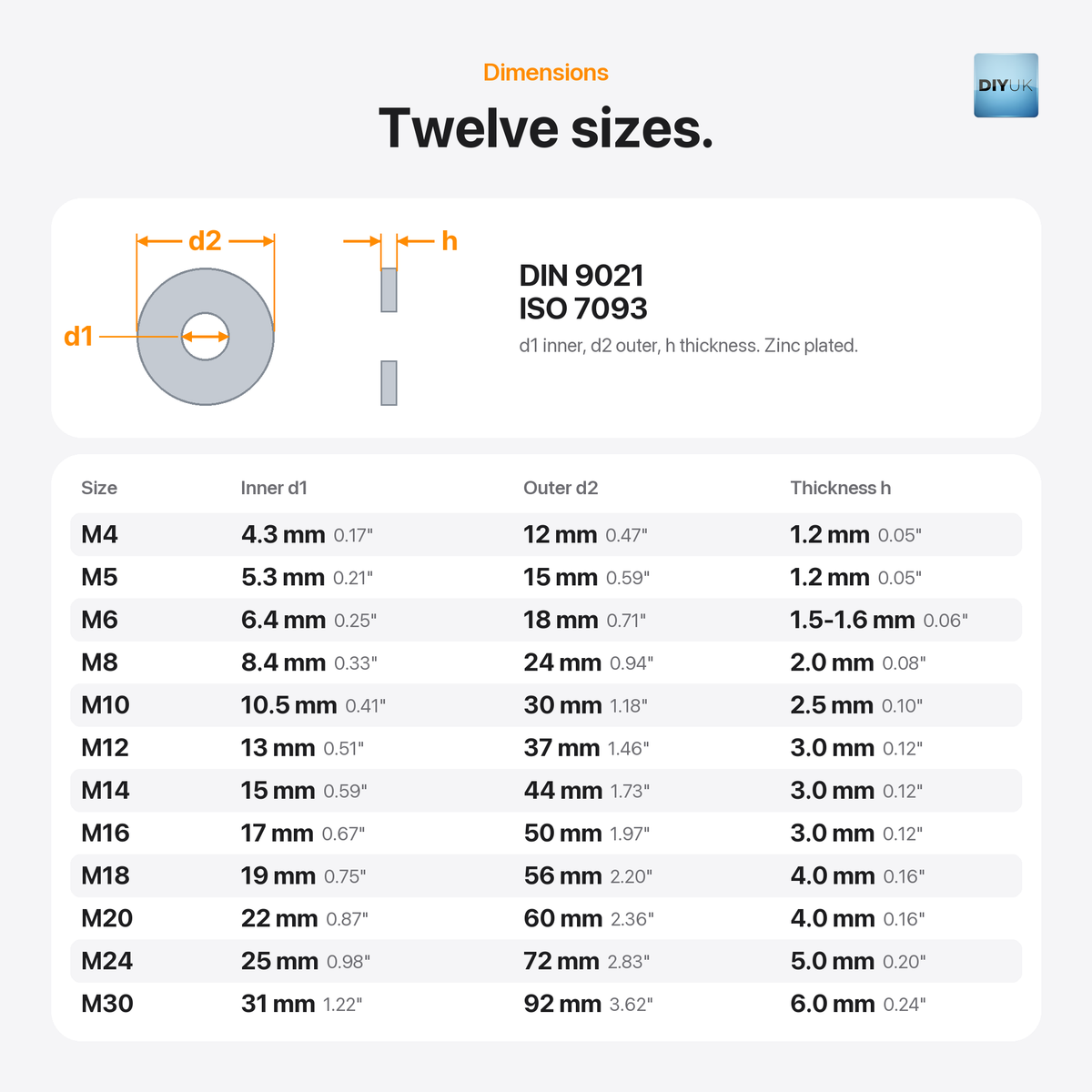

Available Sizes

The table below lists the nominal dimensions for every size we hold in stock. Metric figures are shown first, with the imperial equivalent in brackets.

Sizes at a glance: the M6 flat washer is 18mm across and 1.5-1.6mm thick; M8 penny washers (M8 washers for 8mm bolts and screws) are 24mm across with an 8.4mm hole and 2mm thick; the M10 washer suits a 10mm bolt, with a 10.5mm hole and a 30mm outer diameter; and the largest metal washers, M24 and M30, are 72mm and 92mm across, 5mm and 6mm thick.

Typical Applications

The large bearing surface and wide size range make these washers useful wherever a standard flat washer would be too small to spread the load of a fixing:

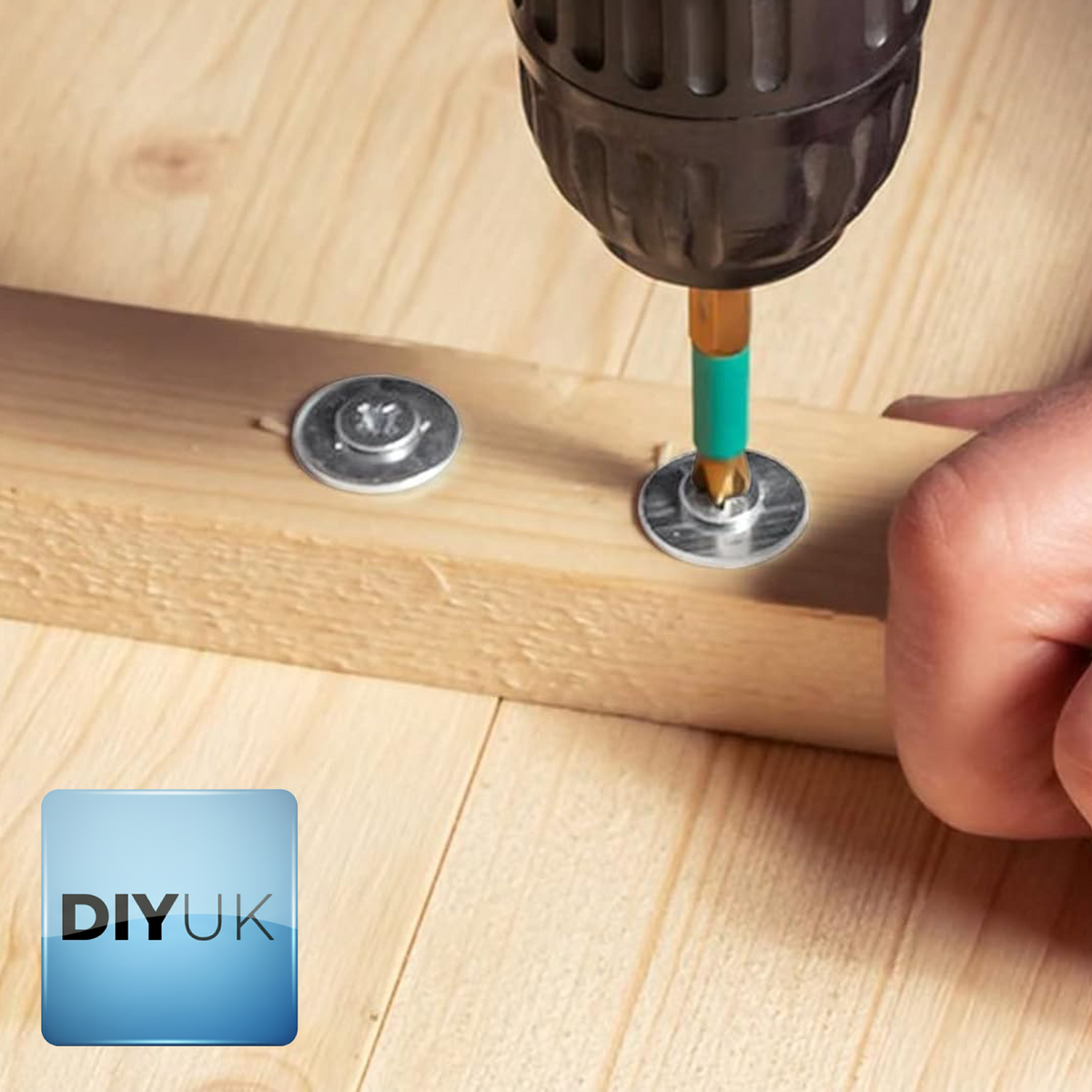

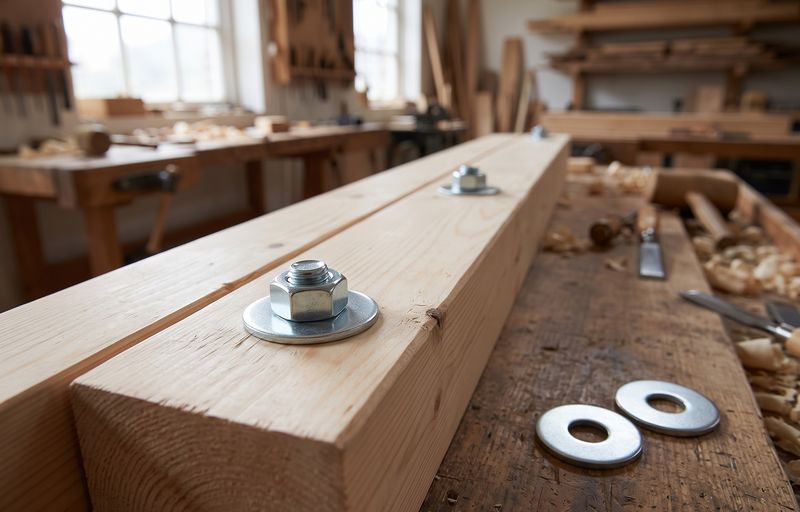

• Woodworking and carpentry: decking, fencing and timber-frame construction, where the wide bearing face helps stop a screw or bolt head sinking into or splitting softwood, plus general joinery where the load needs spreading across a wider area of timber

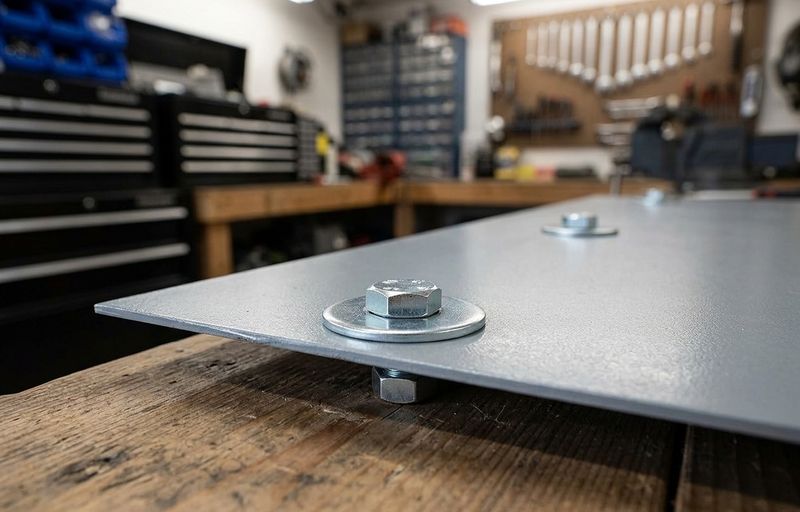

• Automotive and bodywork: body panels, wings (fenders), bumpers and interior trim, where thin sheet metal benefits from the extra bearing area to stop a fixing pulling through

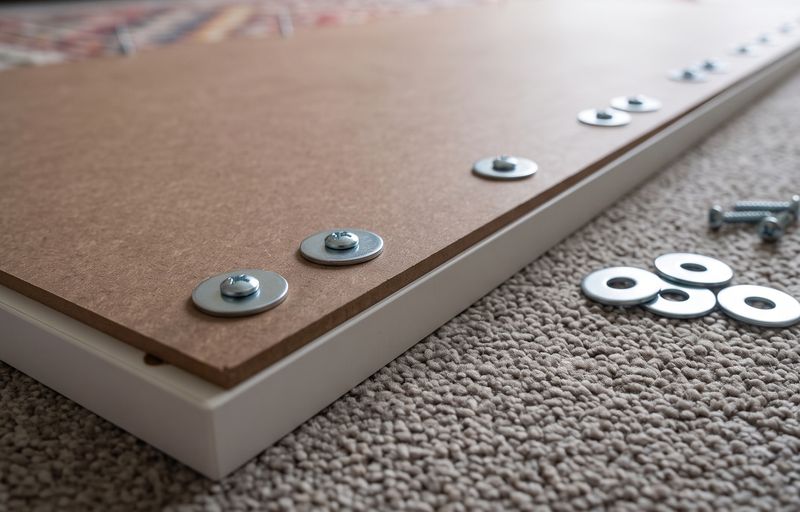

• DIY and home repair: flat-pack furniture, shelf and bracket mounting, and covering oversized, worn or damaged fixing holes that a standard washer can no longer bridge

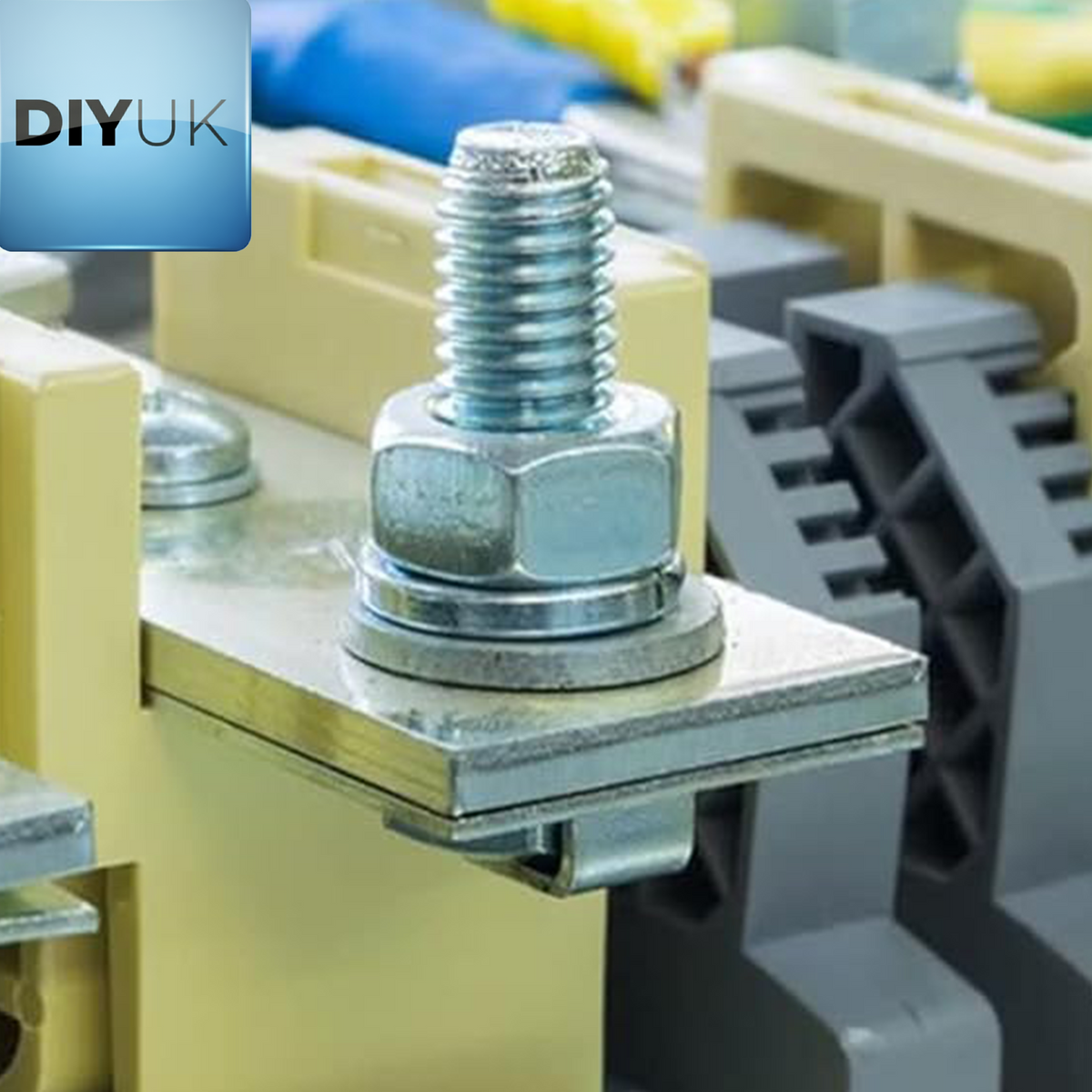

• Plumbing and electrical: securing fixtures and fittings where a wider load-bearing footprint protects the surrounding material

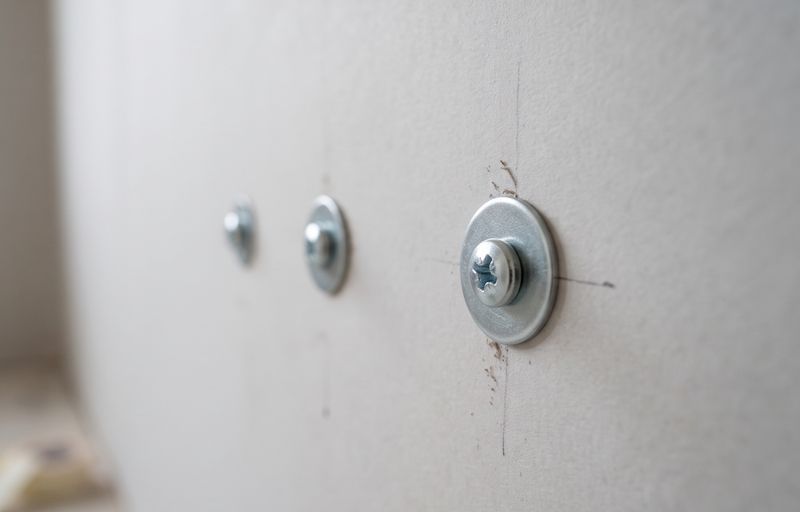

• Plasterboard and soft sheet materials: the extra-large diameter helps prevent the fixing head crushing through, for a cleaner, more secure finish
• General construction: any assembly that needs even load distribution and protection of the fixing

Choosing the Size

Match the washer to the fixing: an M8 washer suits an M8 bolt or screw (see the table above).

Common Questions

Which size do I need?
Match the M size to your bolt or screw: an M8 washer suits an M8 (8mm) bolt or screw, an M10 washer an M10 (10mm) one, and so on up to M30. So washers for M8 bolts are the M8 size, and 4mm flat washers are the M4 size, 12mm across.

How are penny washers different from standard flat washers?
For the same bolt size, penny washers have a much larger outer diameter, so they spread the load over a wider area and help stop the fixing pulling through.

What else are they called?
Fender washers, mudguard washers, repair washers, large flat washers, large metal washers or simply large washers: wide washers for bolts and screws.

How thick are they?
From 1.2mm (M4 and M5) to 6mm (M30); the M6 is 1.5-1.6mm and the M8 is 2mm. In the larger sizes, thick M20 washers are 4mm, M24 thick washers 5mm and an M30 washer 6mm. Every size is listed in the table above.

What pack sizes are available?
Every size comes in packs of 2, 10, 25, 50, 100 or 200 washers.
