Heavy Duty Galvanised Fence Post Base Bracket Concealed Shoe Bolt Down

Fence Post Base BrackeT Heavy Duty Galvanised Concealed Shoe Bolt Down

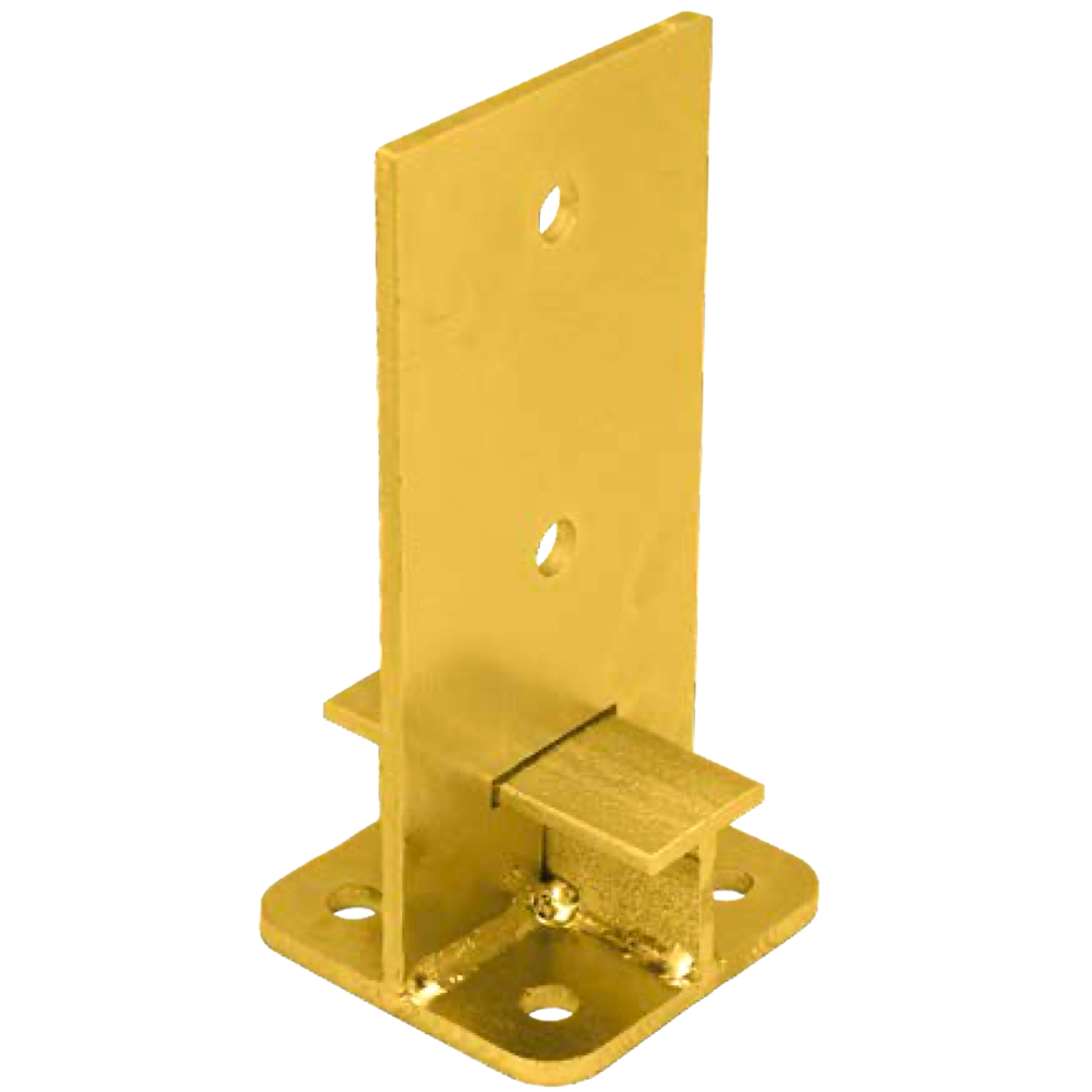

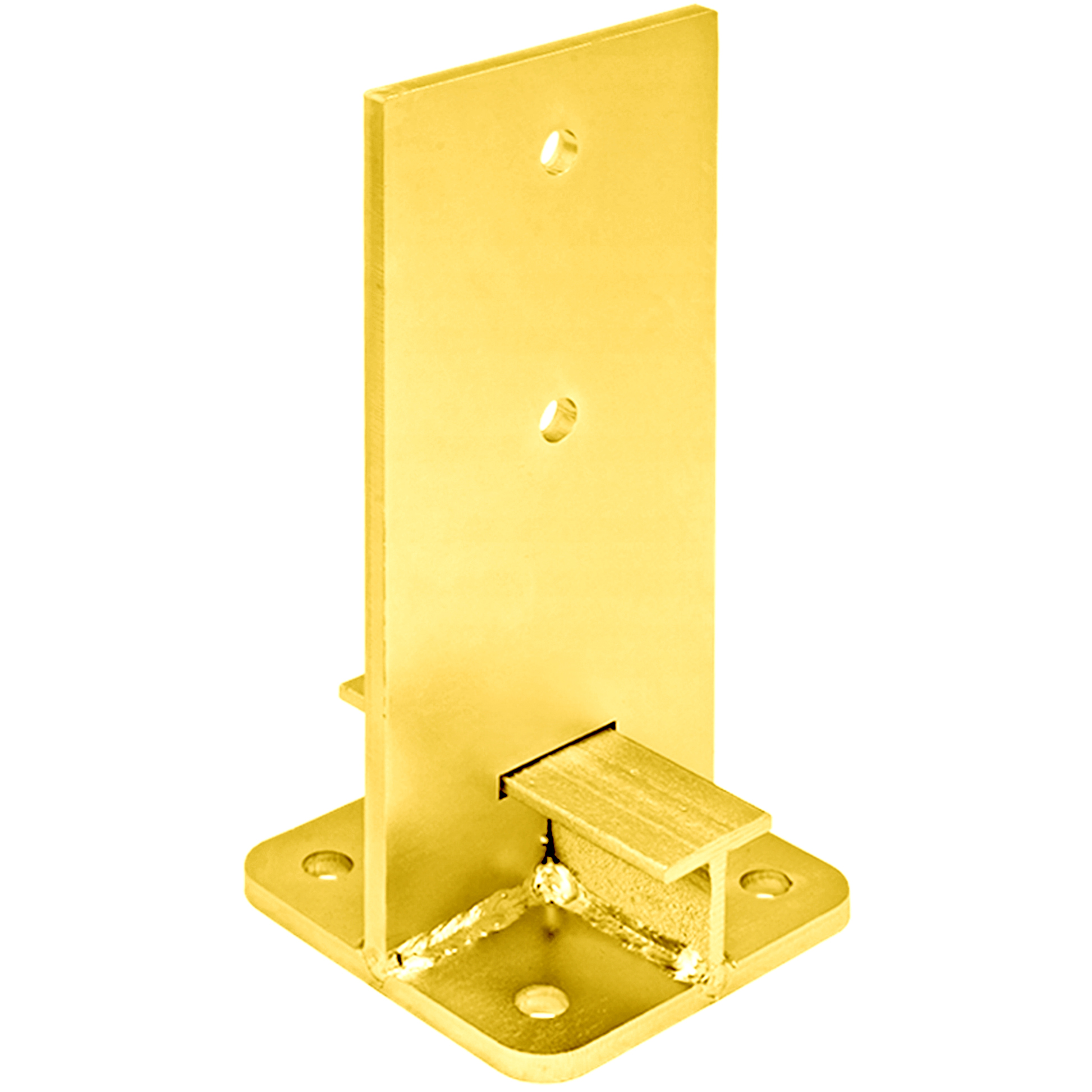

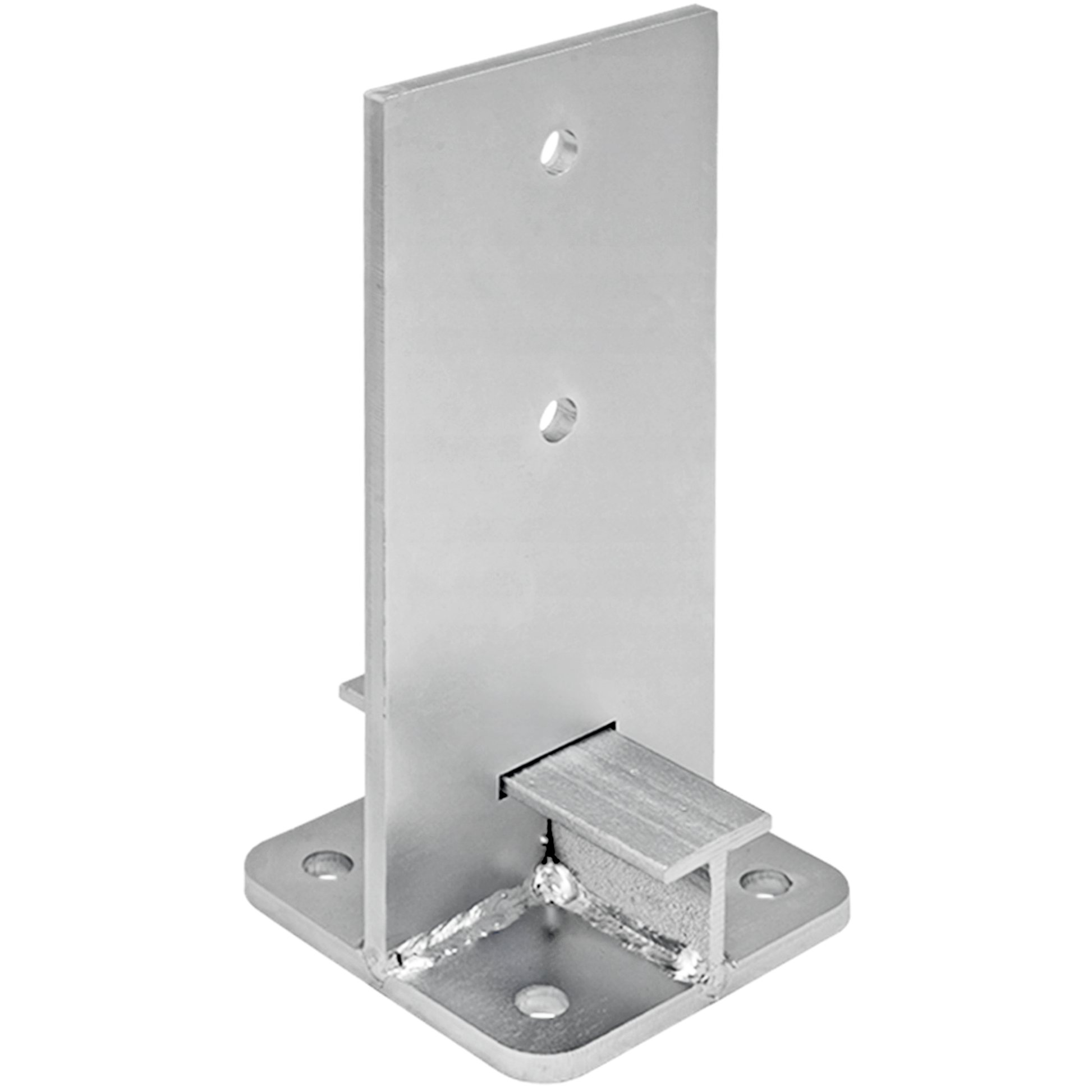

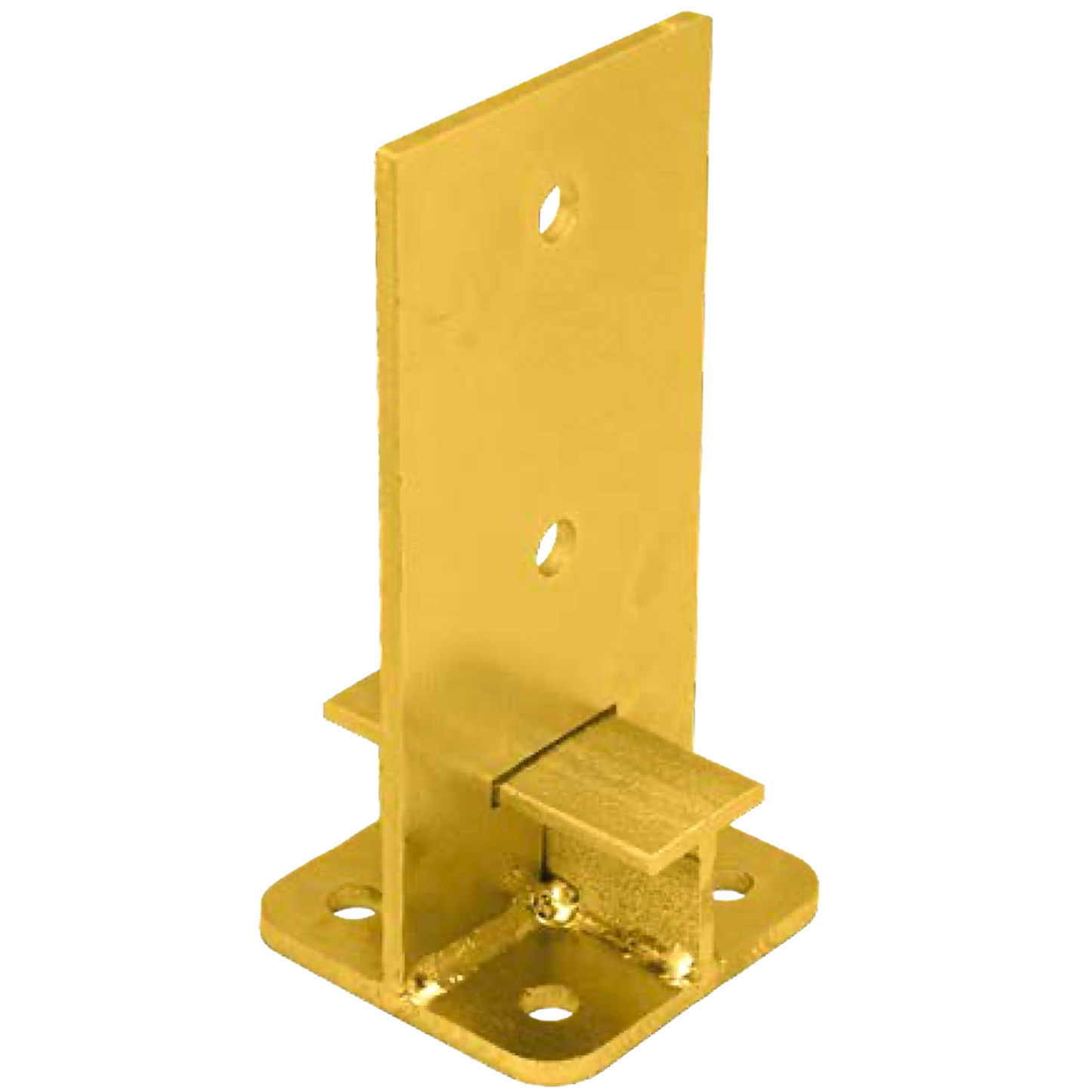

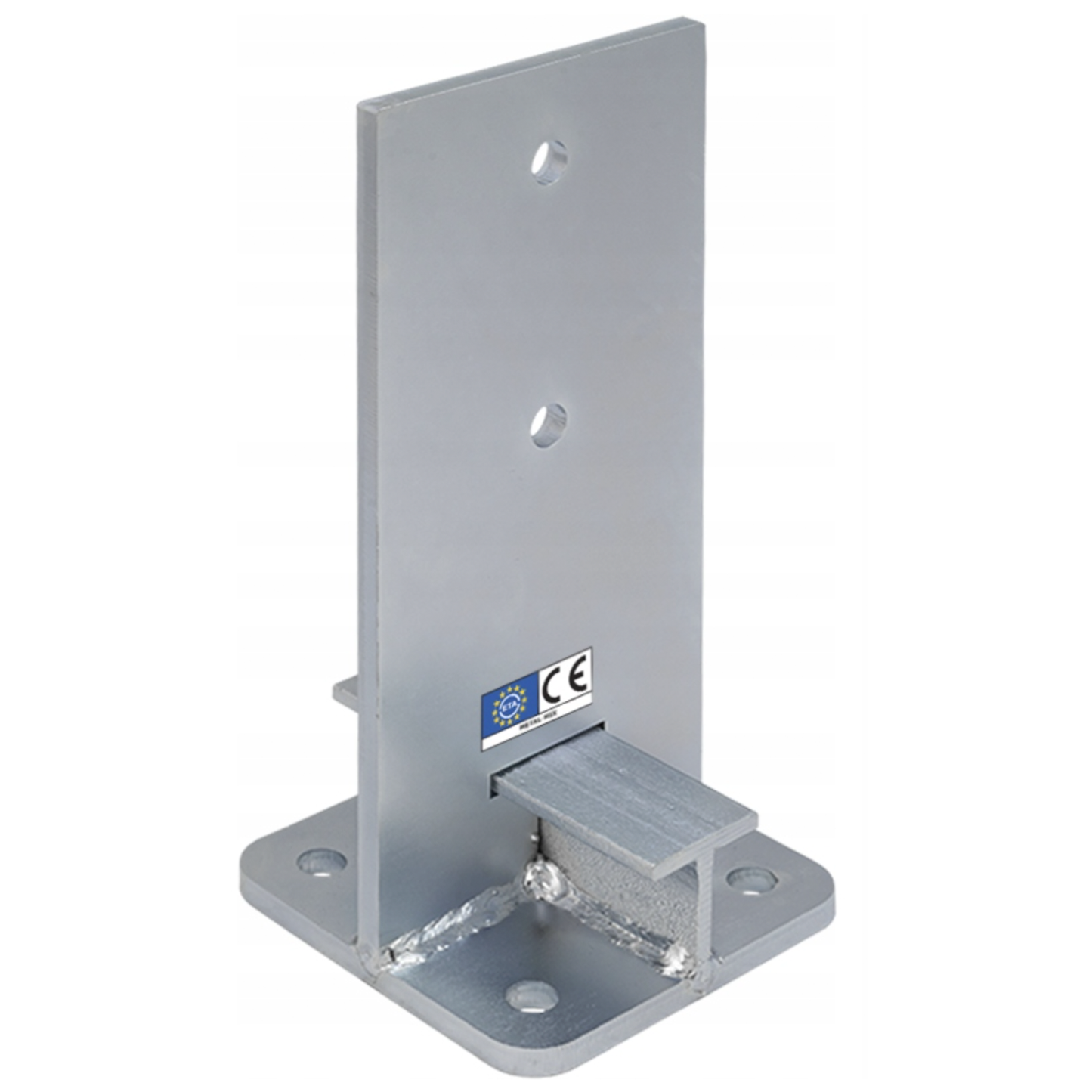

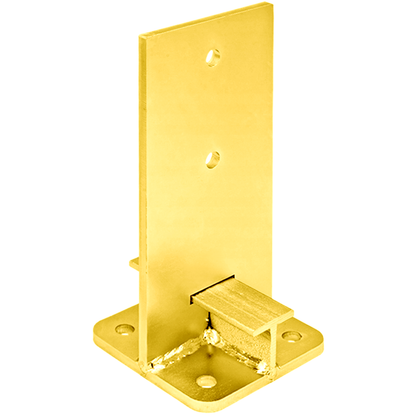

Concealed shoe bolt-down bracket | S235 steel | Hot-dip galvanised | CE ETA 20/1044

Ensure your outdoor structures stand the test of time with these Heavy Duty Galvanised Fence Base Support Brackets. Featuring a concealed shoe design, they deliver exceptional strength and a clean, professional finish for pergolas, fence posts, gazebos, and more. Built from S235 steel with hot-dip galvanised zinc coating, these brackets resist corrosion in harsh weather, making them ideal for both residential and commercial applications. Pre-drilled bolt-down feet simplify installation on concrete and other solid surfaces. CE: ETA 20/1044 compliant.

Key Features
Heavy duty S235 steel construction for superior strength and load capacity
Hot-dip galvanised coating (80–90 μm; min. 60 μm) for outstanding corrosion resistance
Concealed shoe design for a sleek, trip-safe, professional appearance
Bolt-down feet with pre-drilled holes for fast, secure installation on concrete/solid bases
Stabilises posts to prevent wobble under heavy loads and high winds
Suitable for fences, pergolas, gazebos, carports, and other outdoor structures
For residential and commercial use; CE: ETA 20/1044

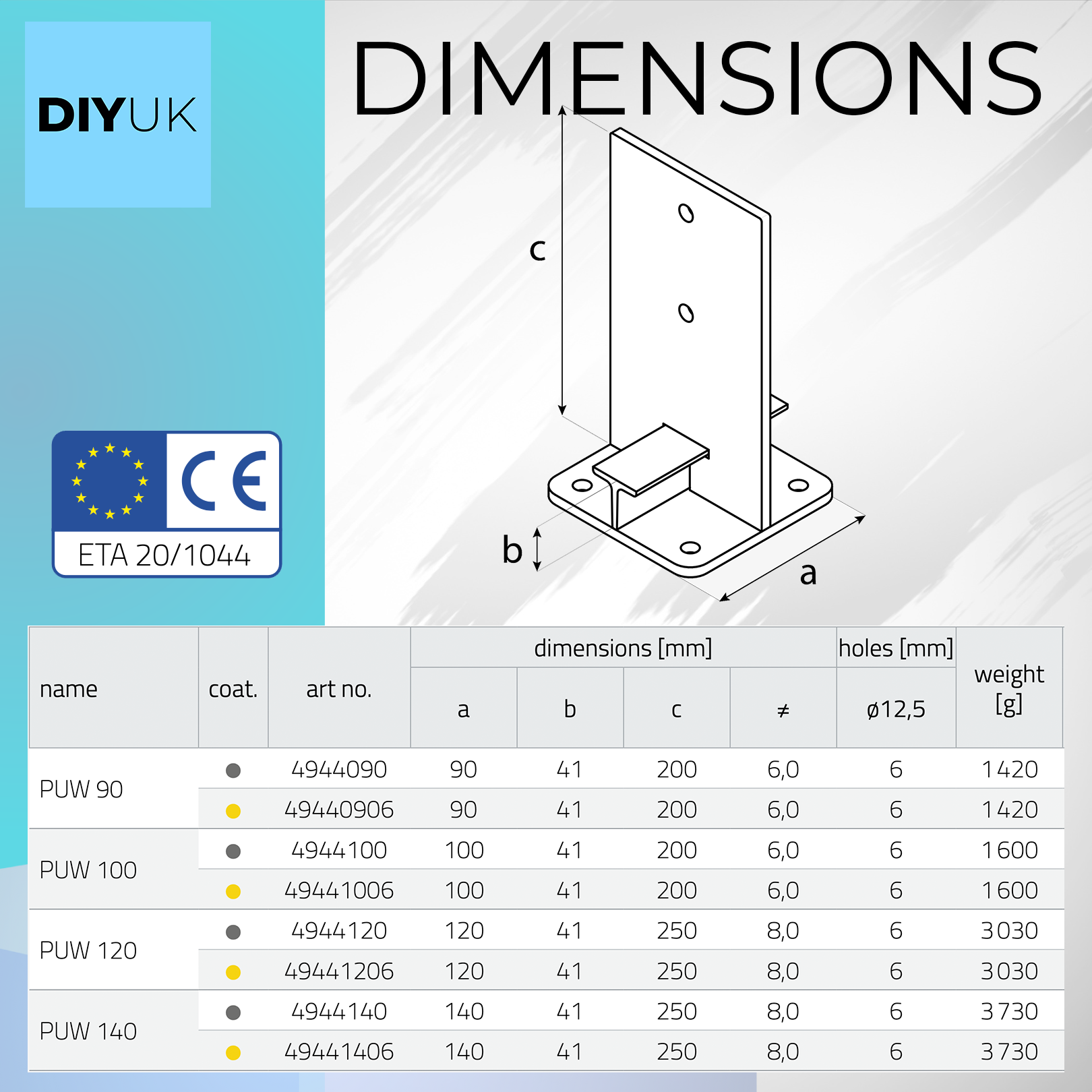

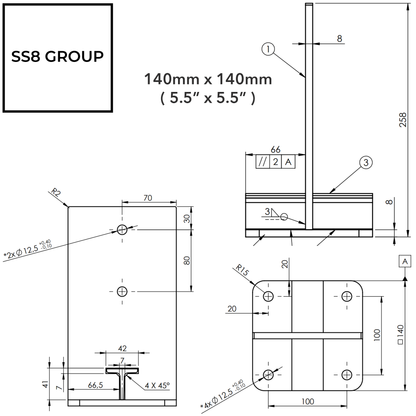

Specifications

| Material                | S235 structural steel |
| Finish                  | Hot-dip galvanised zinc (approx. 450°C immersion) |
| Coating Thickness       | 80–90 μm (not less than 60 μm) |

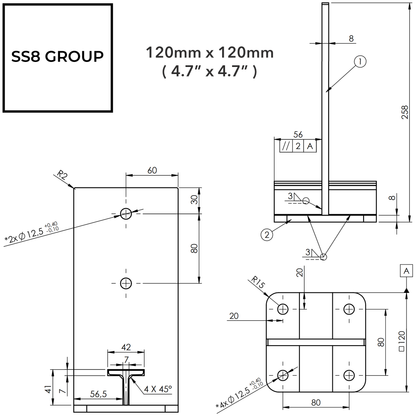

| Design                  | Concealed shoe, bolt-down base with pre-drilled holes |
| Mounting Surface        | Concrete or other solid foundations |
| Use                     | Outdoor/indoor, permanent or temporary structures |
| Compliance              | CE: ETA 20/1044 |
| Paintability            | Suitable for decorative paints for galvanised surfaces |

Why Choose Concealed Shoe Brackets?
Clean look: Hardware remains hidden for a tidy, premium finish
Safety-first: Reduced snag/trip risk around the post base
Long-lasting: Thick zinc layer protects against rust and moisture

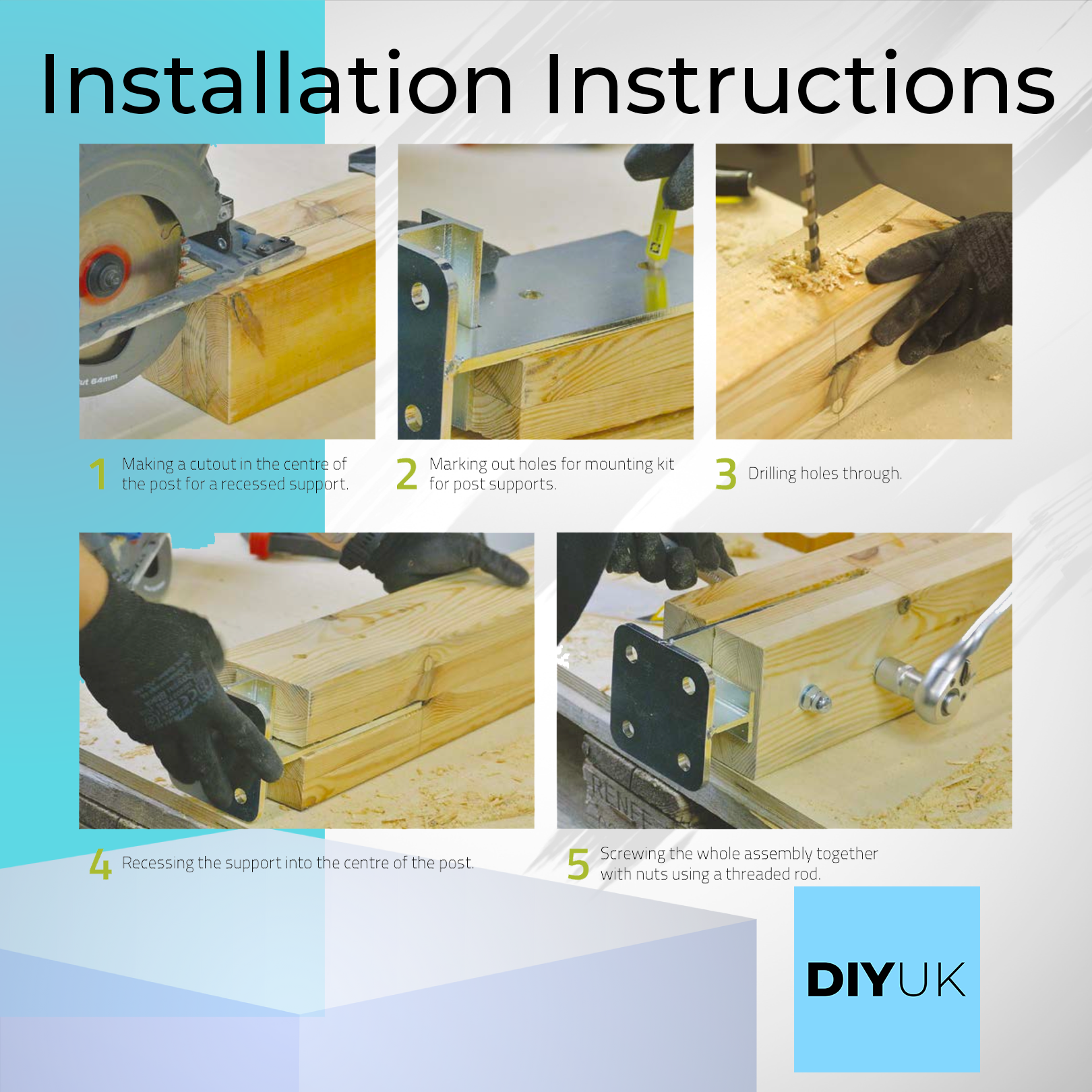

Installation
Mark and drill anchor holes in the concrete or solid base.
Position the bracket and align pre-drilled holes.
Fix the bracket with suitable concrete anchors/bolts.

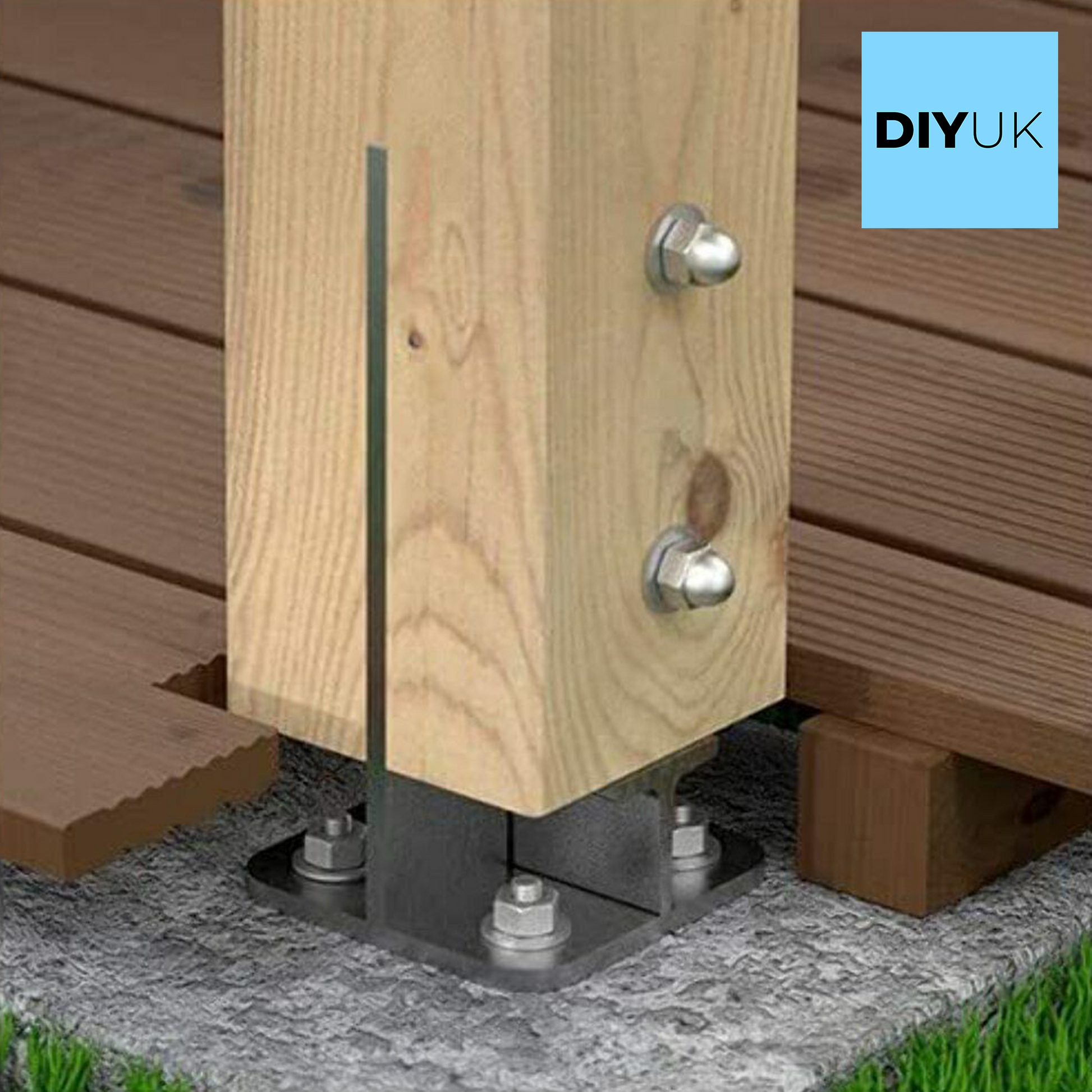

Insert your post into the concealed shoe and secure per your build requirements.
Tip: Use stainless or galvanised fixings for best corrosion resistance.

Note: Anchors/bolts and post fixings are typically not included unless stated by the seller.

Applications
Pergola and gazebo posts
Fence and gate posts
Decking supports, carports, outdoor frames
Residential landscaping and commercial projects

Compliance and Durability
CE: ETA 20/1044
Hot-galvanised zinc coating applied by immersion at ~450°C for deep, uniform protection
Suitable for environments with long-term moisture exposure; can be overcoated with paints compatible with galvanised surfaces

Concealed shoe bolt-down bracket | S235 steel | Hot-dip galvanised | CE ETA 20/1044
