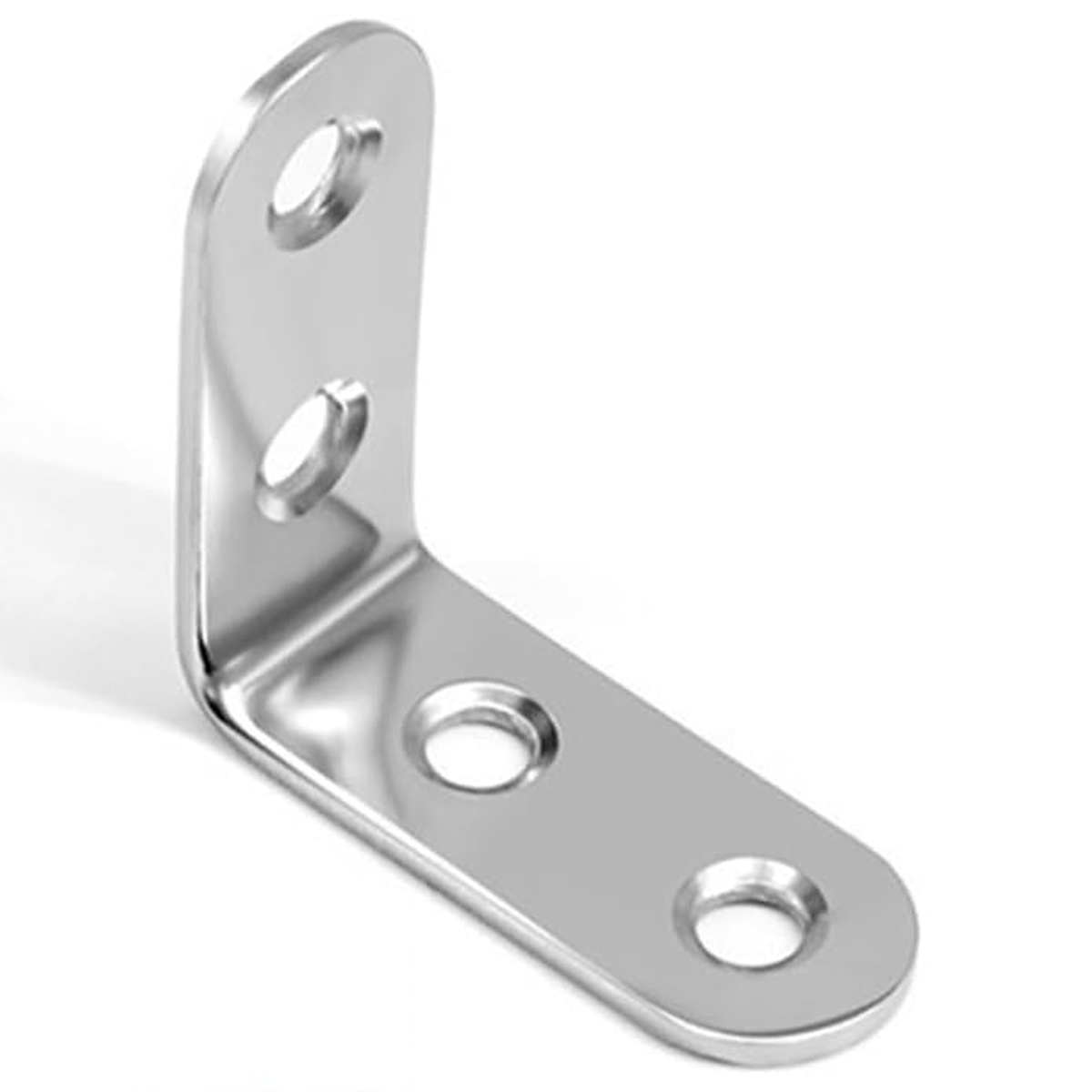

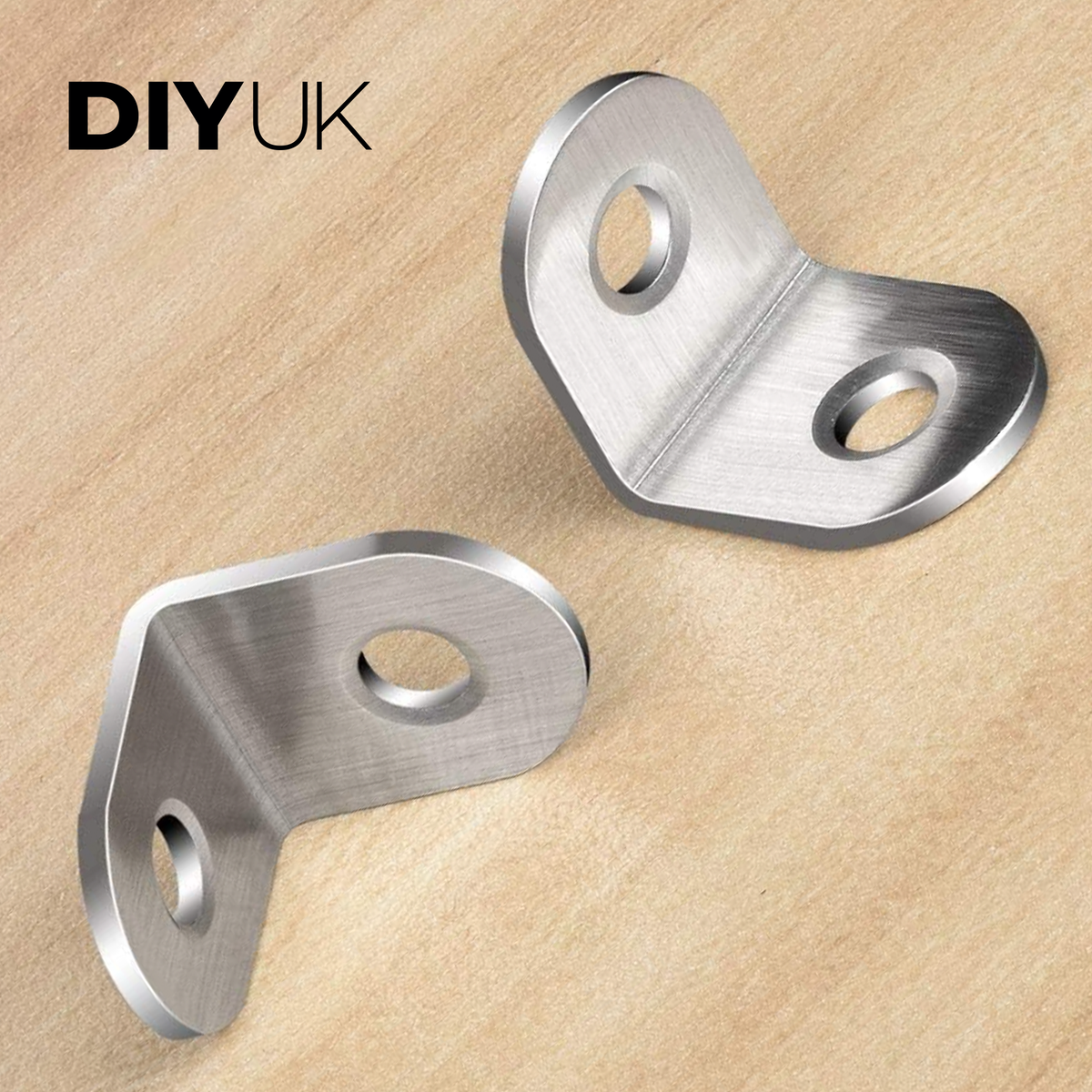

Heavy Duty Zinc Plated Steel L-Shape Corner Brace Angle Bracket (2mm Thick)

Zinc-plated steel L-shape corner brace, folded to a precise 90° angle from 2mm (0.08in) mild steel, built to reinforce and repair right-angle joints in furniture, shelving, and general carpentry and joinery work. Every brace is pressed from cold-rolled EN 10130 DC01 steel, so leg length, angle and fixing-hole position stay consistent from one to the next, and each is zinc-plated for a bright, corrosion-resistant finish for dry interiors, including spaces with occasional moisture (service class 2 to EN 1995-1-1).

The defining feature of this bracket is its narrow 13mm (0.51in) flange width, held to the same dimension across all four available sizes. That narrow profile lets the brace sit flush against the edge of a board or panel without overhanging its face, so once the joint is closed up the fixing stays neat and largely out of sight – a detail that matters on cabinet backs, drawer boxes and other narrow-edge carpentry where a wide, visible bracket would spoil the finish.

Because both legs of the brace are always the same length within a given size – 20 x 20mm (0.79 x 0.79in), 30 x 30mm (1.18 x 1.18in), 40 x 40mm (1.57 x 1.57in) or 50 x 50mm (1.97 x 1.97in) – the bracket is fully symmetrical. There's no particular top, bottom or side to it, so it can simply be turned to whichever orientation lines up neatest against the board edges before it's marked and fixed.

Key Features

• Folded from 2mm (0.08in) mild steel to a precise, consistent 90° angle, so every brace closes the joint square.
• Zinc-plated finish gives a bright, corrosion-resistant surface.
• Manufactured from cold-rolled EN 10130 DC01 steel for a consistent gauge and flat, even legs.
• Narrow 13mm (0.51in) flange width on every size, so the brace sits flush against board edges without overhanging.

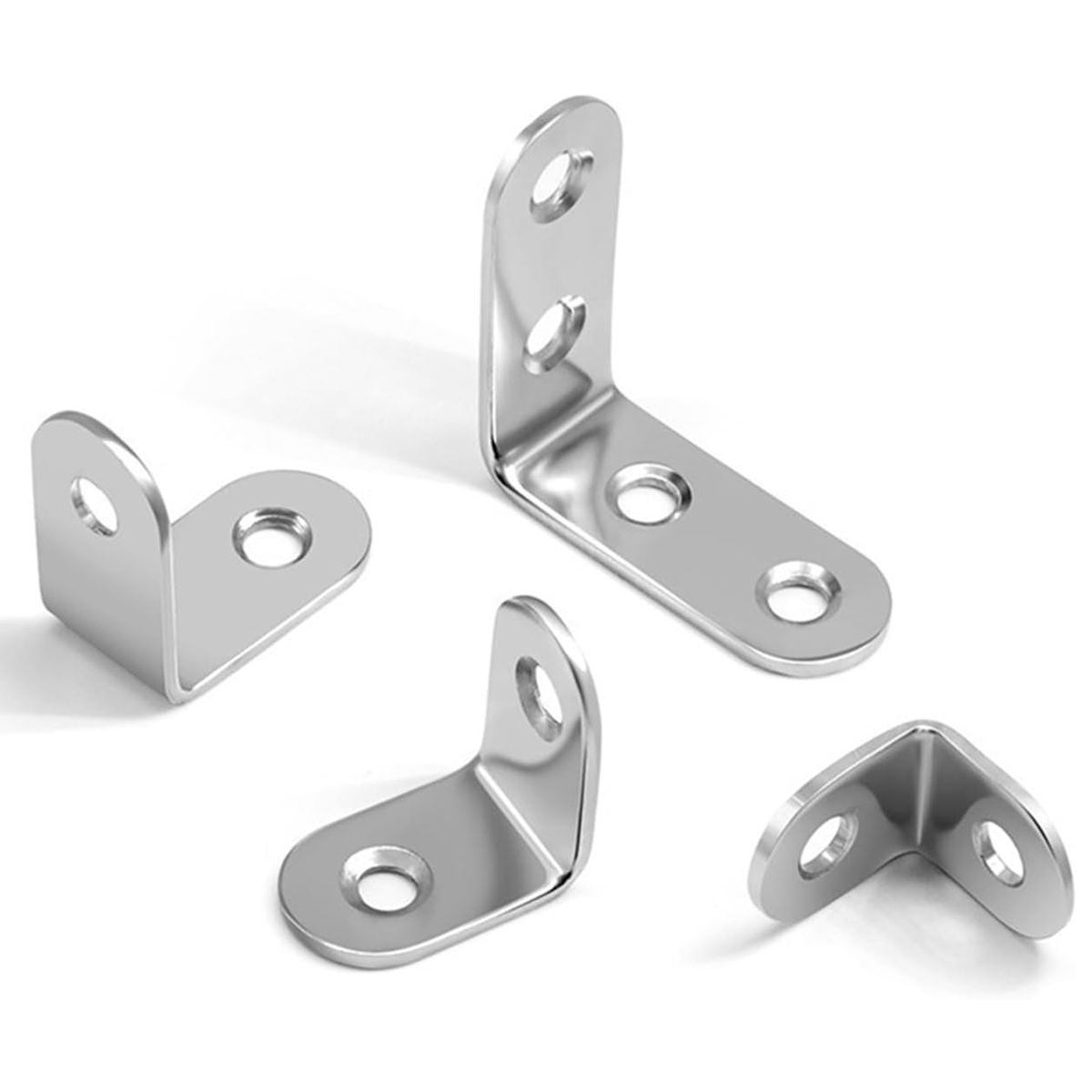

• Four sizes available, from 20 x 20mm (0.79 x 0.79in) up to 50 x 50mm (1.97 x 1.97in), to match the scale of the joint.
• Pre-drilled 6.5mm (0.26in) fixing holes on every size, ready for wood screws or M6 machine screws/bolts.
• Consistent 2mm (0.08in) material thickness across the whole size range, so strength doesn't drop off on the smaller braces.
• Lightweight construction – from 5.7g (0.20oz) each on the smallest size up to 16.7g (0.59oz) on the largest – for discreet reinforcement that doesn't add bulk.

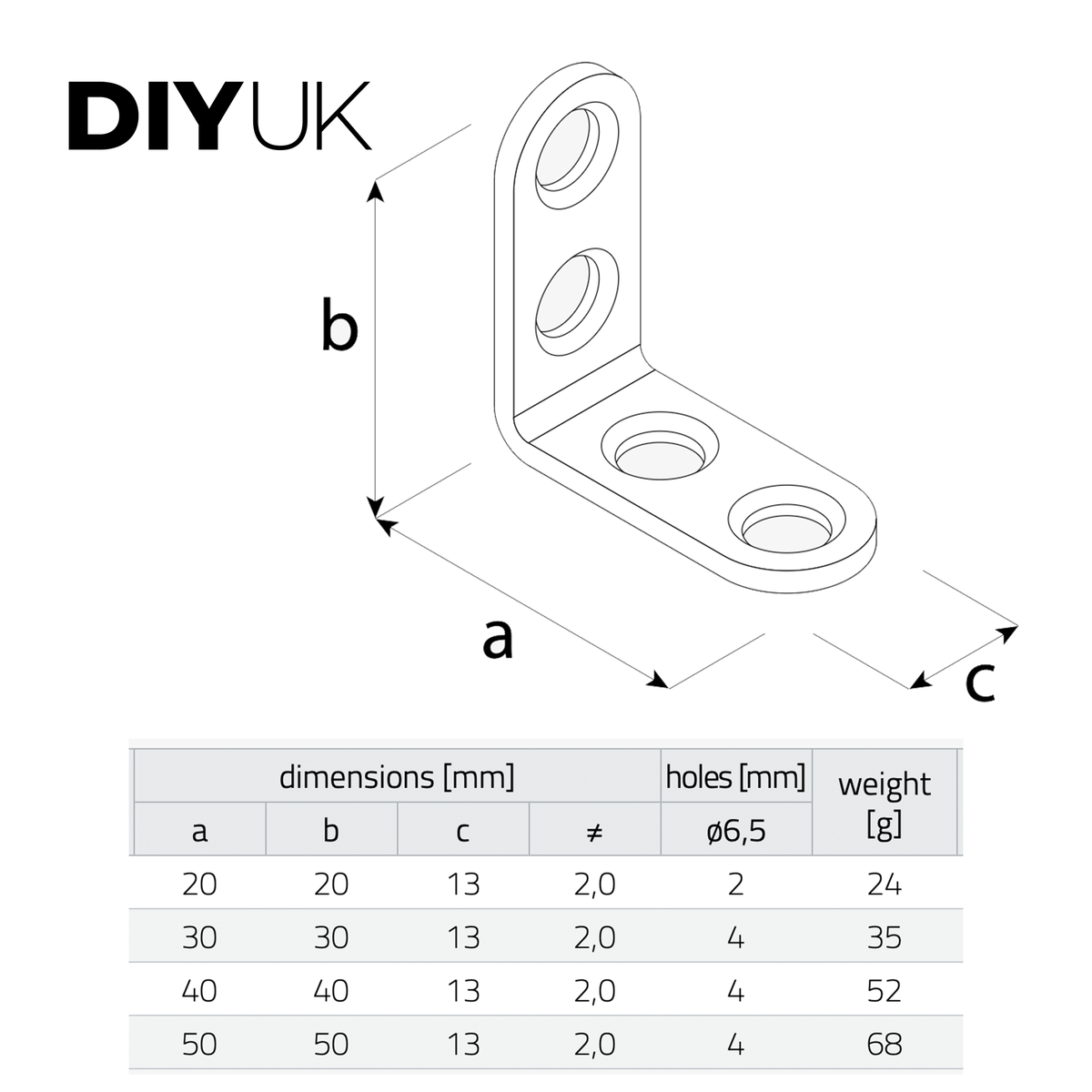

Specification

All four sizes share the same 2mm (0.08in) material thickness and pre-drilled 6.5mm (0.26in) fixing holes, so strength and fixing method stay consistent whichever size is chosen.

Typical Uses

• Cabinet and furniture carpentry – reinforcing carcass corners, drawer boxes and frame joints where a low-profile fixing is needed.
• Drawer and frame construction – squaring up and holding butt joints while glue cures, then providing permanent reinforcement once fixed.
• Shelving supports – strengthening the corner joints of shelf units and small storage frames.
• Picture and mirror frames – reinforcing mitred or butt corners on the back of a frame without the brace showing from the front.
• Small garden furniture – sheltered outdoor projects such as potting benches, planters and garden storage boxes, where the zinc-plated finish gives useful corrosion resistance.
• General joinery repairs – re-fixing a loosened right-angle joint on existing furniture or fittings without replacing the whole piece.

Because the flange width stays the same 13mm (0.51in) across all four sizes, the smaller braces suit narrow-section timber and delicate framing – picture frames, small drawer boxes – while the larger 40 x 40mm (1.57 x 1.57in) and 50 x 50mm (1.97 x 1.97in) sizes are better suited to wider boards, carcass corners and joints carrying more load, without the fixing becoming any more obtrusive.

Installation Guidance

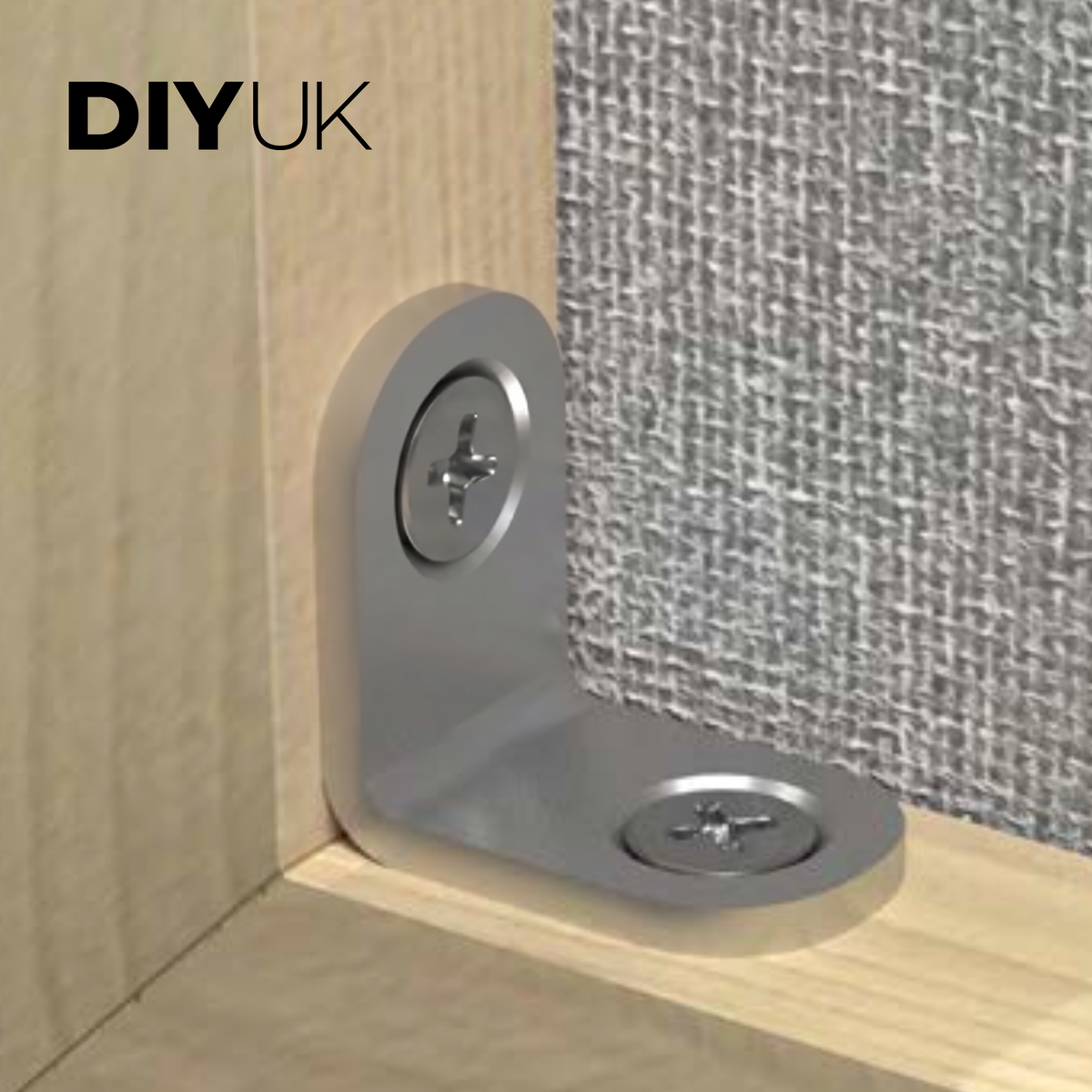

Offer the brace into the internal corner of the joint, with both legs sitting flush against the adjoining faces, and check it is square before marking. Mark the fixing points through the pre-drilled 6.5mm (0.26in) holes, then pilot-drill the timber or panel to suit. Fix with wood screws for timber and panel joints, or M6 machine screws/bolts where a through-bolted connection is needed, tightening evenly across all fixing points so the brace draws the joint up square rather than pulling it out of alignment. Choose the smallest size that comfortably spans the joint for the neatest, most discreet finish, and step up a size where the board is wider or the joint needs extra rigidity.
